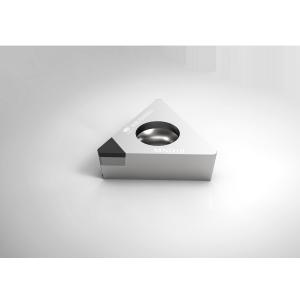

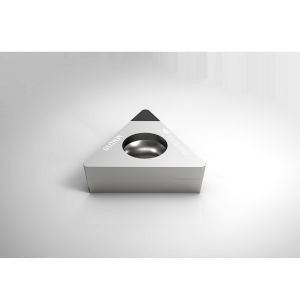

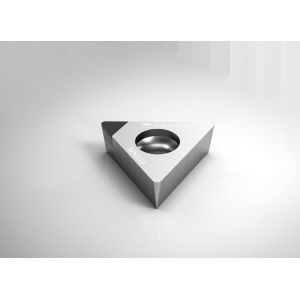

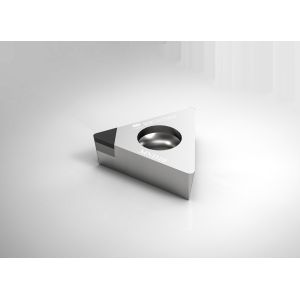

    ManaNova PCD Cutting Inserts Polycrystalline Diamond CNC Turning Inserts

    Ask Lasest Price
    Brand Name : ManaNova
    Model Number : TCGW 110302
    Certification : ISO9001,14001.18001, RoHS
    Price : $20-40/ Piece
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : In stock
    Delivery Time : 3-4days
    • Product Details
    • Company Profile

    ManaNova PCD Cutting Inserts Polycrystalline Diamond CNC Turning Inserts

    TCGW090204 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials


    In the manufacturing worldia, changes push us to promote our products and service.

    We are devoted to providing you with cutting tools and solutions that match the ambitions of your company.

    We want to grow up with you together.


    Description:

    "ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.

    ManaNova is a concept that stands in the view of end-users, we strictly choose

    PCD and PCBN materials to provide the universal cutting effect.



    Easy choice and Fast delivery is the feature of ManaNova.


    Main products:


    Poly-Crystalline Diamond (PCD)

    1. Reduce your tooling cost significantly

    2. For non-ferrous metal machining


    PCD insert is suitable for rough and finish machining of aluminum alloy and other non-metal materials.


    Polycrystalline cubic boron nitride(CBN)

    1. With an excellent hot hardness

    2. Good toughness and thermal shock resistance.

    3. For hardened steel, cast irons, sintered irons as well as powder metallurgy components machining


    PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.



    Advantages:

    ·High quality

    ·Low cost

    ·Factory direct supply


    Service:
    · Online store service
    · Local distributor support
    · Technical support


    Application:

    MND10Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc.

    PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP).
    PCD with flood coolant can also be used in titanium super-finishing applications.
    ·Aluminum and aluminum alloys
    ·Copper, brass, and bronze alloys
    ·Zinc and magnesium alloys
    ·Carbon Fiber
    ·Epoxy resins
    ·Plastics
    ·Fiberglass composites
    ·Graphite composites


    Specification:

    AngleDimensionsGrade
    ANSI CodeISO CodeTipsIC
    mm
    S
    mm
    R
    mm
    Φd
    mm
    LE
    mm
    MND
    10
    TCGW 1.81.50.5TCGW 0902021N5.562.380.22.42.5
    TCGW 1.81.51TCGW 0902041N5.562.380.42.42.5
    TCGW 220.5TCGW 1103021N6.353.180.22.82.5
    TCGW 221TCGW 1103041N6.353.180.42.82.5
    TCGW 222TCGW 1103081N6.353.180.82.82.5
    TCGW 32.51TCGW 16T3041N9.5253.970.44.42.5
    TCGW 32.52TCGW 16T3081N9.5253.970.84.42.5
    L-TCGW 32.50.5L-TCGW 16T3022N9.5253.970.24.416.2
    L-TCGW 32.51L-TCGW 16T3042N9.5253.970.44.415.9
    L-TCGW 32.52L-TCGW 16T3082N9.5253.970.84.415.3
    F-VBGW 1.81.51F-VBGW 0902043N5.562.380.42.49

    Feed rate recommendation
    Nose radius(mm)Ra um
    0.20.40.81.63.26.4
    Feed Rate f (mm/rev)≤
    0.20.0280.0400.0570.0800.1130.160
    0.40.0400.0570.0800.1130.1600.226
    0.80.0570.0800.1130.1600.2260.320
    1.20.0690.0980.1390.1960.2770.392
    1.60.0800.1130.1600.2260.3200.453
    2.40.0980.1390.1960.2770.3920.554
