1200mAH ER9V Lithium Battery 9v Alarm Battery For Smoke Detectors

Add to Cart

9V Battery ER9V 1200mAH Lithium Batteries for Smoke Detectors 9v alarm battery 1200mah

Rating

Type	Disposable battery	Non rechargeable battery
Name	Lithium Battery	LiSoCl2 battery
Model	ER9V	9V lithium battery
Capacity	1200mah	Single cell
Rated voltage	10.8V
Max constant current of discharge	40mA
Max discharge current(pulse)	80mA
Operating temperature range	-40～85℃
Storage life	10 years	Relative humidity Temperature -5 ℃~+35℃
Cell Weight	Approx: 40 g
Self Discharge Rate	2%	Out of the recommended condition, the self-discharge rate 2% may increase.
Assemblage Dimension	Length:49.0mm Max Width:27.5 mm Max Thickness:17.5 mm Max	Measured weight of 300gf at 25 ℃ ± 1 ℃.Not including battery connecting wire.

Safety Test

No.	Item	Testing Conditions and Method	Standard
1	Short-circuit	A battery is short-circuited for 1 hour at 0.04Ω.	UL1642 No explosion, no fire
2	Heat shock	The cell is placed in a thermal chamber. Temperature is raised to 130±2ºC at the rate of (5±2ºC)/min and held for 10 minutes, then cooled to room temperature at the rate of 5±2ºC/min.	UL1642 No explosion, no fire
3	Humidity and heat test	A battery is placed in a box for 48 hours where the temperature is 40ºC±2ºC and the relative humidity is 90%～95%	UL1642 No explosion, no fire

Other 3.6v ltihium battery list:

Lithium Thionyl Chloride cells
Model	voltage (v)	capacity(mAh)	demension(mm)		Nominal Discharge Current(mA)	weight (g)
Model	voltage (v)	capacity(mAh)	Diameter	Height	Nominal Discharge Current(mA)	weight (g)

ER10250	3.6	400	10.5	25	0.5	5
ER10280	3.6	450	10.5	28	0.5	6
ER10450	3.6	700	10.5	45	1	8
ER14250	3.6	1200	14.5	25.4	1	10
ER14335	3.6	1600	14.5	33.5	1	12
ER14505	3.6	2400	14.5	50.5	2	19
ER17335	3.6	1800	17.5	34	3	18
ER17505	3.6	3200	17.5	50.5	3	26
ER18505	3.6	3600	18.7	50.5	3	28
ER26500	3.6	9000	26.2	50	4	52
ER34320	3.6	8000	34.2	32.5	4	58
ER34615	3.6	19000	34.2	61.5	5	100
ER341245	3.6	36000	34.2	124.5	10	195
ER14250M	3.6	800	14.5	25.4	2	10
ER14335M	3.6	1300	14.5	33.5	3	13
ER14505M	3.6	2200	14.5	50.5	4	19
ER17505M	3.6	2800	17.5	50.5	5	27
ER18505M	3.6	3200	18.7	50.5	5	28
ER26500M	3.6	6500	26.2	50	10	52
ER34615M	3.6	14000	34.2	61.5	15	100
ER13150S	3.6	300	13.2	15	0.5	6
ER14250S	3.6	750	14.5	25.2	1	10
ER14505S	3.6	1600	14.5	50.5	2	20
ER26500S	3.6	4100	26.2	50	4	60
ER34615S	3.6	10500	34.2	61.5	5	106
ER2450	3.6	500	24.5	5.9	1	9
ER32100	3.6	1700	32.9	10	1	25
ER3265	3.6	1000	32.9	6.5	1	17
ER9V	10.8	1200	1726.348.5		1	30
EF651615	3.6	400	16.815.86.8		1	5
EF651625	3.6	750	16.825.86.8		1	8
Remark: 1)"M"-Power Type; 2)"S"-High Temperature;

Application:

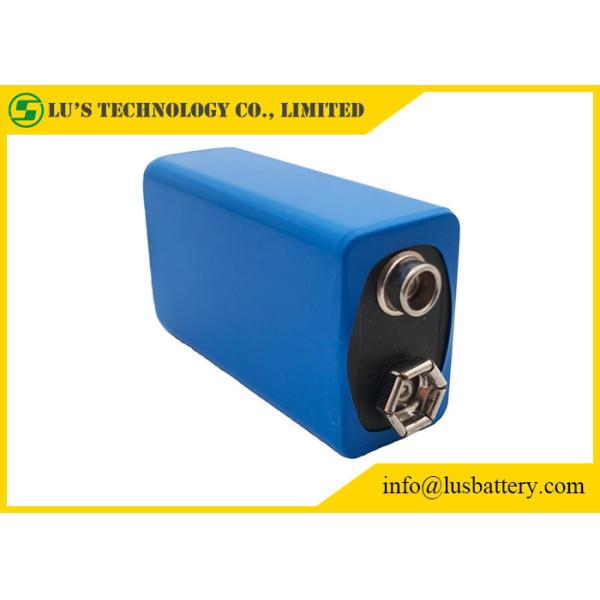

ER9V 1200mah primary lithium battery picture:
