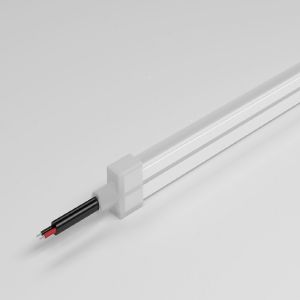

12V/24V IP44&IP67 2-Step MacAdam bin and dot free White /RGB
LED Strip
Quick Detail:
· Size 6mm x 12mm / 0.24" x 0.47" (W x H)
· UV-resistance(no yellowish)
· Lumileds LED
· 120º beam projection
· Maximum run length 13M@10W/m
· IP44&IP67 rating
· Cable entry directions: Front, side, bottom cable entry
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Tech Date | |
| Model | ASTON 0612 WHT |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP44&IP67 |
| Warranty | 5 Years |
| Max. Run Length | 13M |
| CRI | Ra90 |
| LED Color | Neural white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 2700K-5500K |
| Power(W/M) | 10W/m |
| Lumen | |
| 413lm/m@10W/m |
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of LEDLINE ASTON 0612 WHT is 120mm, do not bend
to top direction, or bend too sharp or twist. If bend it wrongly,
PCB inside will be damaged and the lighting fixture will not turn
on.
3. During installation, please make sure there are at least two
workers to cooperate together and strictly follow the instruction
manuals.
4. Warranty: All LED light are warranted to be free from defects in
product itself for 5 years from the date of purchase. This warranty
does not cover failures due to abuse, misuse, improper handling,
act of nature, negligence, normal wear, accidental damage,
modifications or repairs made by the purchaser or incorrect voltage
conditions.
Applications:
1. Top bending, better lighting performance& higher brightness,
suitable for commercial lighting, general lighting, detail lighting
required exquisite
designs.
2. Ideal for KBB lighting, retail shop lighting, cabinet lighting.
3. Grand hotel, apartment, lobby hall.
4. Fits for shopping mall, flagship store, restaurant.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. Are you a manufacturer?
A: Yes, we have our own factory and professional engineers to meet
your any requirements. Welcome you to visit our factory.
Q3.Why use Silicone material?
A: 1.UV resistant, will not yellow in time.
2.Highly flexible, stable and
durable; soft to bend, fast recovery after bending.
3.For the installation environment, it can endure in -25℃ to 60℃
temperature.
4.Non sticky, easy-to-clean, no smell and no chemical reaction with
detergent.
5.Premium look and feel.
Q4. Is it possible to visit the factory?
A: Of course, we welcome customers to experience our production
equipment and standard production environment
