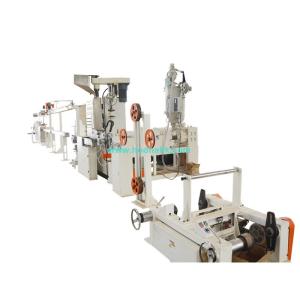

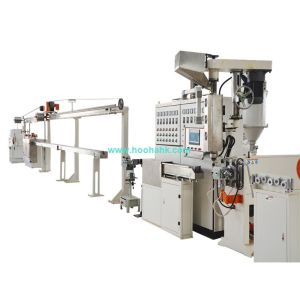

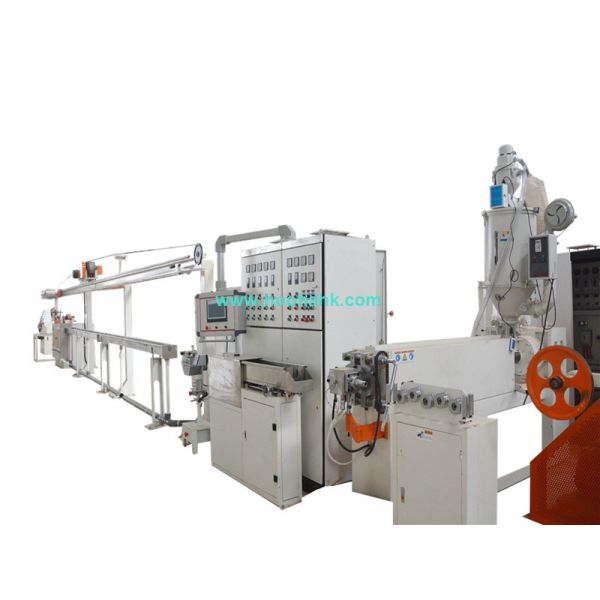

Plastic Sheath PVC Wire Extruder , Electric Cable Extrusion Line

    Buy cheap Plastic Sheath PVC Wire Extruder , Electric Cable Extrusion Line from wholesalers

    Buy cheap Plastic Sheath PVC Wire Extruder , Electric Cable Extrusion Line from wholesalers
    • Buy cheap Plastic Sheath PVC Wire Extruder , Electric Cable Extrusion Line from wholesalers
    • Buy cheap Plastic Sheath PVC Wire Extruder , Electric Cable Extrusion Line from wholesalers
    • Buy cheap Plastic Sheath PVC Wire Extruder , Electric Cable Extrusion Line from wholesalers
    • Buy cheap Plastic Sheath PVC Wire Extruder , Electric Cable Extrusion Line from wholesalers
    • Buy cheap Plastic Sheath PVC Wire Extruder , Electric Cable Extrusion Line from wholesalers
    • Buy cheap Plastic Sheath PVC Wire Extruder , Electric Cable Extrusion Line from wholesalers

    Plastic Sheath PVC Wire Extruder , Electric Cable Extrusion Line

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-HH-65/70/80/90/100/120/150
    Certification : CE/SGS/ISO
    Price : 65000USD
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000000
    Delivery Time : 60
    • Product Details
    • Company Profile

    Plastic Sheath PVC Wire Extruder , Electric Cable Extrusion Line

    Product Description
    1,Equipment application:
    Suitable for the extrusion of PVC,PE,PU and other plastic material,mainly applied in the insulation or sheath extrusion of car cable,net wire,power cable,data wire,high frequency wire,building wire,electric wire.etc.The changed screw is suitable for extrusion of low smoke halogen free,nylon and other plastic material.
    2,Feature:
    a,High configuration,main electric parts are importing,
    b,screw adopt the modern latest technology,Gear tooth surface abrasion resistance.
    c,Low energy consumption of the equipment,a large quantity of extrusion,
    d,high production efficiency, high gloss surface,small temperature difference,low noise, good stability, strong continuity of working, convenient operation, long service life.
    3,Technical parameters:
    Sheath wire and electric wire extruder
    Technical parameters
    Machine type
    HH-65
    HH-70
    HH-80
    HH-90A
    HH-90B
    HH-120
    HH-150
    HH-200
    Pay-off shaft
    double-shaft type
    800-1600
    1000-2000
    1600-2500
    1600-3150
    Screw diameter
    ø65
    ø70
    ø80
    ø90
    ø120
    ø150
    ø200
    Screw L/D
    25:01:00
    MAX. extrusion output
    130kg/h
    150kg/h
    200kg/h
    250kg/h
    280kg/h
    400kg/h
    650kg/h
    900kg/h
    Motor power
    25HP
    30HP
    40HP
    50HP
    60HP
    70HP
    100HP
    150HP
    Wire diameter
    ø1.2-10mm
    ø1.5-12mm
    ø2.0-20mm
    ø3.0-25mm
    ø10-40mm
    ø15-60mm
    ø30-120mm
    above ø40mm
    Cooling device
    single layer/double layers U type
    single layer U type
    Haul-off power
    5HP
    7.5HP
    10HP
    15HP
    20HP
    10HP
    MAX. line speed
    500m/min
    450m/min
    400m/min
    200m/min
    100m/min
    60m/min
    60m/min
    Take-up type/power
    double-shaft bundle packaging
    ø1000mm-2000mm
    ø1600mm-2500mm
    ø1600mm-3150mm
    ø2000mm-3500mm
    4,main equipment configuration:
    1,double-shaft pay-off rack(large-shaft pay-off rack)
    2,straightener platform
    3,main motor
    4,automatic dryer and hopper
    5,electric apparatus main control cabinet
    6,movable water trough
    7,laser diameter gauge
    8,high speed printing machine
    9,fixed water-trough
    10,double-wheels capstan
    11,horizontal type wire-accumulator
    12,power frequency sparker
    13,double-shaft take-up machine,etc.
    2480 Pay off
    Heater
    Control system
    Dancer
    Motive Tank
    Sparks
    Capstan
    Meter Counter
    diameter guage
    The Wire Samples
    Company Profile
    00:00
    02:00
    Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution.
    Our vision: To make wire & cable manufacturing and using more humanized.
    Our target: More professional customer service, struggle for employees' dreams.
    We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
    Exhibitions & Certifications
    Thailand Exhibition
    India Exhibition
    ShangHai Exhibition
    Moscow Exhibition
    The Technical Team
    Customer Cases
    Dubai
    American
    Tanzania
    Algeria
    Nigeria
    Packing & Delivery
    1. Film packing 2. Wooden package 3. Enclosed wooden package
    FAQ
    1. who are we?
    We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),Mid East(17.00%),Southeast Asia(16.00%),Eastern Asia(13.00%),South Asia(10.00%),South America(8.00%),Eastern Europe(4.00%),North America(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%). There are total about 5-10 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

    4. why should you buy from us not from other suppliers?
    1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
    Accepted Payment Currency:USD,EUR,CNY;
    Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
    Language Spoken:English,Chinese
