Random Packing 9mm 38mm Metal Pall Ring Easily Wettable
The product description

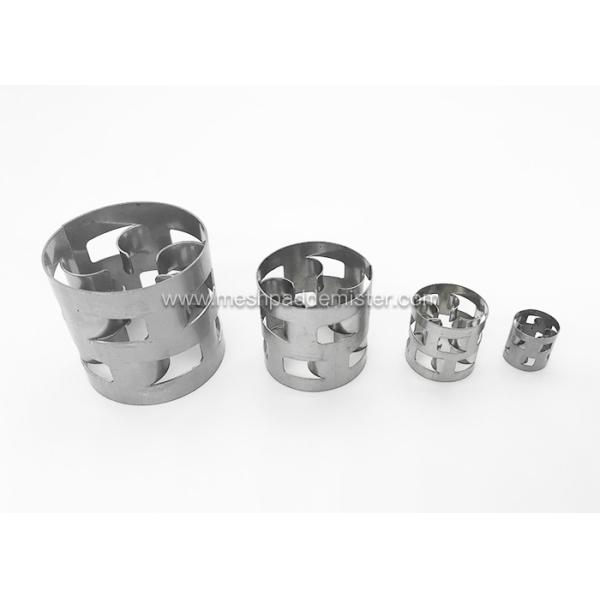

Pall ring is a new type of random packing improved on Rasiichig
ring. Compared with the later, pall ring has improved the liquid
distribution of packing layer greatly, with open windows on ring
sidewall.
Technical Data of metal pall rings:
| 16mm Pall Rings |
| Free Space (%) | 93 |  |
| Specific Surface Area (m2/m3) 316 |
| No. Per Unit Volume (m3 ) | 210,000 |
| Packing Factor (m-1) | 315 |
Specific Weight (kg/m3) 400 – 535 Stainless Steel |
| Dimensions (mm) | 16 x 16 |
| Thickness (mm) | 0.3 – 0.4 |
| Normal Material stainless steel 304, 316L |
| 25mm Pall Rings |
| Free Space (%) | 94 | |
| Specific Surface Area (m2/m3) 209 |
| No. Per Unit Volume (m3 ) | 49,500 |
| Packing Factor (m-1) | 176 |
Specific Weight (kg/m3) 322 – 644 Stainless Steel |
| Dimensions (mm) | 25 x 25 |
| Thickness (mm) | 0.4 – 0.8 |
| 38mm Pall Rings |
| Free Space (%) | 95 | |
| Specific Surface Area (m2/m3) 122 |
| No. Per Unit Volume (m3 ) | 13,450 |
| Packing Factor (m-1) | 107 |
Specific Weight (kg/m3) 200 – 400 Stainless Steel |
| Dimensions (mm) | 38 x 38 |
| Thickness (mm) | 0.4 – 0.8 |
| Normal Material stainless steel 304, 316L |
| 50mm Pall Rings |
| Free Space (%) | 96 | |
| Specific Surface Area (m2/m3) 100 |
| No. Per Unit Volume (m3 ) | 6,000 |
| Packing Factor (m-1) | 107 |
Specific Weight (kg/m3) 196 – 354 Stainless Steel |
| Dimensions (mm) | 50 x 50 |
| Thickness (mm) | 0.5 – 0.9 |
| Normal Material stainless steel 304, 316L |
Material
Available in various types of steel, such as: C-steel, SS304L,
SS316L, SS321, SS310, SS410, Duplex 1.4462, Ti Gr.2 & Gr.7
Benefits of metal pall rings:
High resistance to fouling
Multiple materials available
High temperature applications
Mechanically robust, lesser probability of breakage
Good liquid/gas distribution and high mass transfer efficiency
Product Advantage:
1.Easily wettable
2.High resistance to fouling
3.High temperature endurable
4.High temperature applications
5.HIGH MECHANICAL STRENGTH
6.High capacity with low pressure drop
7.Mechanically robust, lesser probability of breakage
8.Good liquid/gas distribution and high mass transfer efficiency.
Packing and shipment
Plastic bag, Jumbo Bag, Wooden Case, Carton Box, On Pallet With PP
Film Wrapped
