    V Shaped Stainless Steel Wedge Wire Screen Nozzle Resist Aging

    Ask Lasest Price
    Brand Name : STD
    Model Number : STD-WSF-022
    Certification : API, ISO, CE, QMS, IAF, IADC
    Price : To be negotiated
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pieces per day
    Delivery Time : 5-8word days
    • Product Details
    • Company Profile

    V Shaped Stainless Steel Wedge Wire Screen Nozzle Resist Aging

    V Shaped Stainless Steel Wedge Wire Industrial Water Screen Filter Spary Nozzles

    Description:
    Stainless steel wedge wire industrial water screen filter spary nozzles is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle. Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate. Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.
    Type

    Slot
    (mm)

    Dimension

    Flow Rating
    (M3/H)

    D(mm)H(MM)L(MM)ThreadFittings



    STD-0.5



    0.25



    45



    45



    90/request

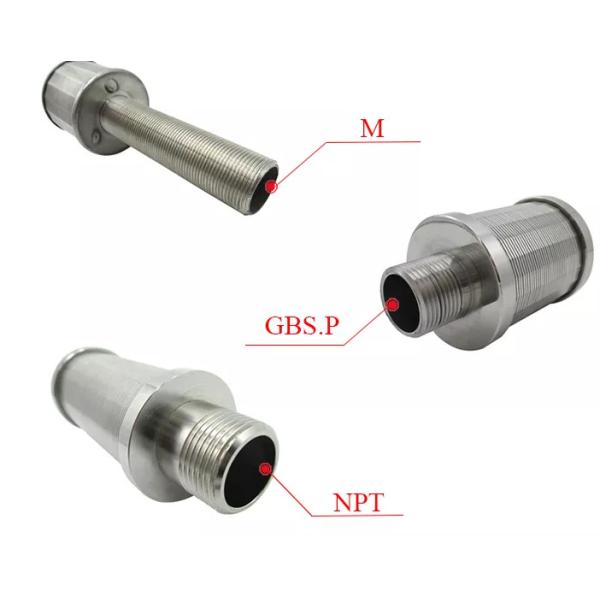

    M,NPT, G, PT(BSPT),Z,BSP, request

    SS Gasket,
    Rubber gasket,
    Nut, request



    0.5

    STD-1.00.25534590/request1.0
    STD-1.50.25574590/request1.5
    STD-2.00.255755100/request2.0
    STD-2.50.257055100/request2.5
    STD-3.00.257070120/request3.0
    Note

    * All the above size are the normal size. Customized size is possible.
    * STD could help to design according to the application and requirement.
    * The nozzles customized range as below:
    1. Slot range: 0.05-2mm
    2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application
    3. Thread according to requirement

    Feature:

    1. Type 316L stainless steel construction.

    2. Continuous slot design provide large circulation area
    3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
    4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
    5. Wedge wire screen is highly resistant to plugging.
    6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
    7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly


    Application:


    This filter nozzle can be used at the filter equipment for the filtration of water, petrol resin and other medium. It can be also used in water treatment, water soft, conversion of sea water into fresh water, the filter of food chemistry and other filter industry.



    The Package:

    Quality V Shaped Stainless Steel Wedge Wire Screen Nozzle Resist Aging for sale
