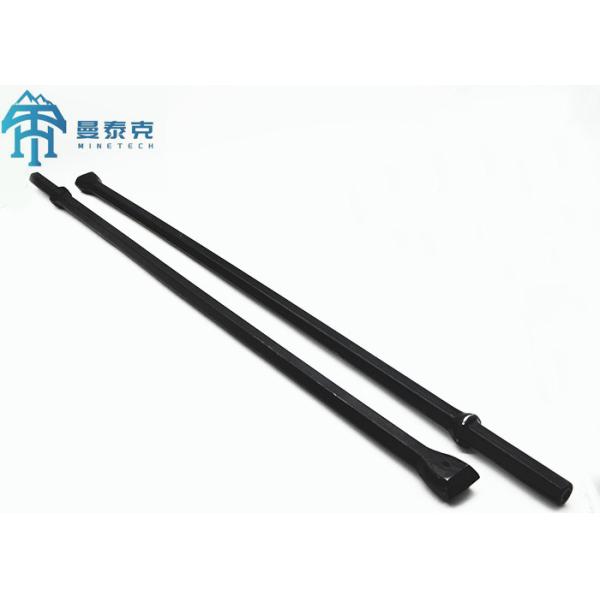

1000 mm Pneumatic Rock Drill Tool Integral Drilling Rod
Product information of integral drill rod:
Integral drill rods are ideal in small hole drilling, all integral
drill rods consist of hex. rods with integrated cemented carbide
chisel-shaped bit heads. With the same steels as and the best
carbides made in China, we are supplying different lengths of
integral drill rods with different head diameters:
Shank sizes: Hex. 19mm, Hex. 22mm;
Head diameters: 26mm ~ 42mm;
Effective lengths: 400mm ~ 7000mm;
Specification of integral drill rod:
Bit diameter | 38mm
|
Length | 1000mm |
Weight | 3.4kgs |
Rod hex | 22mm |
Shank hex | 22x108mm |
Application of integral drill rod:
Integral rods are used by hand held rock drill in granite and
marble quarries, underground mining, for small blasting hole
drilling.
Advantage of integral drill rod:
1. Through-hardened shank end for high wear resistance and a longer
service life
2. Stainless steel flusing tube lining to prevent corrosion and
breakage
3. Super tough 40SiMnCrNiMo steel, specially designed for wet or
dry drilling.
4. Special anti-corrosion oil to protect the flushing hole of the
rod.
5. High quality insert subjected to special bronze- brazing
process.
Package of integral drill rod:
Bundle or wooden case
