    Welded Type Metal Stair Tread Grating With Steel Checker Plate Residential Grating

    Ask Lasest Price
    Brand Name : Zhuote
    Model Number : 303/30/100
    Certification : ISO9001-2015
    Price : Can discuss
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Square meters/day
    Delivery Time : 5 - 8work days
    • Product Details
    • Company Profile

    Welded Type Metal Stair Tread Grating With Steel Checker Plate Residential Grating

    Welded type metal stair tread grating with steel checker plate residential grating
    Product Description

    The treads are also called stair treads, steel ladder treads, and ladder treads. They are a kind of stair treads used for platforms. The installation methods include welding connection and bolt connection. The welding fixed treads can be directly welded to the ladder. Liang Shang.
    The step board fixed by welding is directly welded to the ladder beam. It does not need to add the side board of the step board. It is relatively economical and durable but not easy to disassemble. The bolted step board needs thicker side boards on both sides of the side board. , The installation is directly fixed by bolts, which can be recycled and reused. Customers can customize according to their actual needs, and can be made into various sizes with appropriate types of steel gratings to match the corresponding stairs.


    Main Type:

    T1 Welded fixing Without nosing (Smooth bar and serrated bar)

    T2 Bolted fixing Without nosing (smooth bar and serrated bar)

    T3 Welded fixing Checkered plate nosing (smooth bar and serrated bar)

    T4 Bolted fixing Checkered plate nosing (smooth bar and serrated bar)


    Product NameStair Tread
    Grating Style

    1. Flat Bar

    2.Serrated Bar

    3.I Flat Bar

    4.I Serrated Bar

    Bearing Bar Size

    25*3mm,25*4mm,25*5mm,30*3mm,30*5mm,32*3mm,32*5mm,

    40*3mm,75*5mm,100*10mm

    Bearing Bar Pitch

    Custom:15-90mm

    Routine Use:25mm,30mm,35mm,40mm

    Twisted Cross Bar Pitch50,100mm or according to your requirements
    Surface Process of Gratings

    1.Hot-dipped Galvanizing

    2.Untreated

    3.Painting

    Grating Standard

    1.China:YB/T4001.1-2007

    2.USA:ANSI/NAAMM(MBG531-88)

    3.UK:BS4592-1987

    4.Australia:AS1657-1985

    Steel Grade Standards

    1.China GB 700-88

    2.USA:ASTM A36/A36M-96

    3.UK:BS4360:1990

    4.Australia:AS3679

    HDG Standard

    1.China:GB/T13912-2002

    2.USA:ASTM A123/A123M-97a

    3.UK:BS729

    4.Australia:AS1650

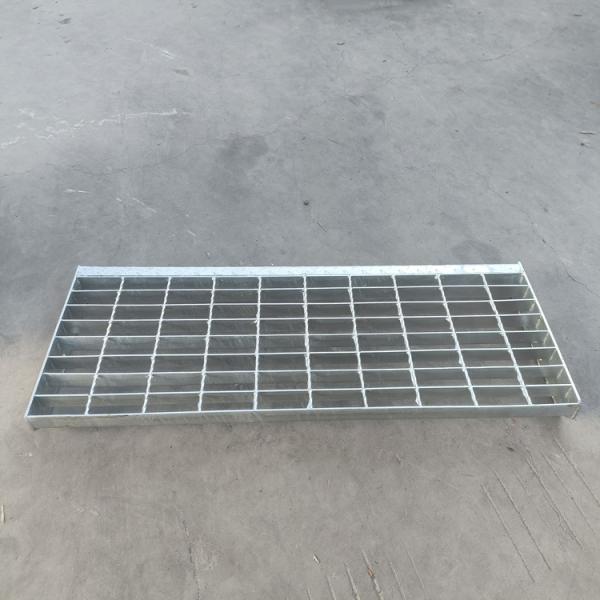

    Steel Stair Treads Grating picture:


    FAQ
    1.How much about your annual production capacity?
    600 tons per month
    2.Can you provide free sample?
    Yes,we can provide the sample of 20cm*20cm.
    3. What is your terms of payment?
    30% T/T in advance and the balance paid before shipment, L/C at sight, you also can pay by West Union
    4. What is the delivery time?
    Usually within 10days, customized order may need longer time.
    5. Is there quality control on all production lines?
    Yes,all production line have adequate quality control.
    6. How do you make our business long-term and good relationship?
    (1)We keep good quality and competitive price to ensure our customers benefit;
    (2) We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
