    JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment

    Ask Lasest Price
    Brand Name : BOTO
    Model Number : BT-2016
    Certification : CE ISO
    Price : Negotiated
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 200 Set/Sets per Month JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment
    Delivery Time : 1-25 days,to be negotiated
    • Product Details
    • Company Profile

    JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment

    JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment


    Product Description


    Equipment summary:

    This JIS D0203 Water Spray Test Equipment/Rian Test Room is used to test anti-rain and waterproof performance for products, the products such as steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.


    Techincal parameter:

    ModelBT-2016ABT-2016B
    Testing temperatureRoom temperatureRt~85°C
    Inner size100(W)*100(D)*100(H) cm or customize
    Spray volume0.07(1±5%)L/min (Every hole in average)
    Spray nozzleSpherical laser drilling,direction: 360°adjustable,
    make injection of rain fan, to spray the specimen
    Hydraulic apertureφ0.8mm
    Water spray hole spacing50mm
    Number of blowhole16 or 25
    Water ring radiusR400mm
    Spray nozzle diameterφ15mm stainless steel
    Pendulum Swing tube rangeabout ±180° (can adjust to ±45°, ±60°, ±90°)
    Swing speed60°/s adjustable
    Spray pressure0~400Kpa adjustable
    Specimen rotative speed4~17rpm (Adjustable)
    Weight350kgs
    Power1 phase,220V,5KW

    Corresponding standard:

    JIS D0203, D5500, SAE J585e, CNS 7138


    Applicable industries:

    Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control.


    Detailed Images

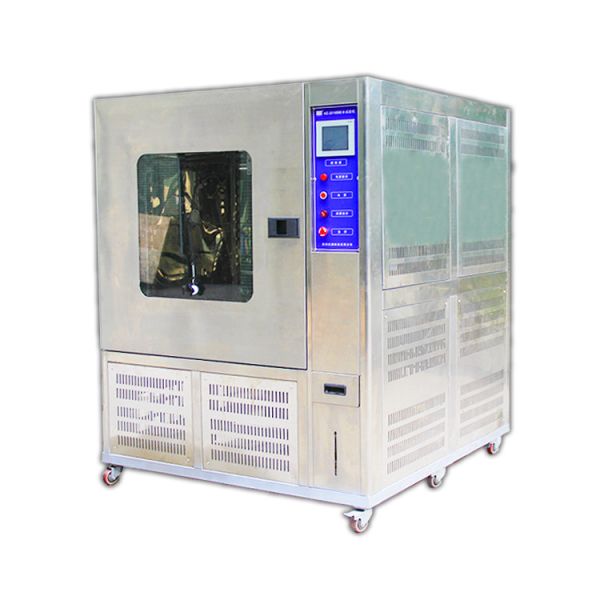

    Quality JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment for sale
