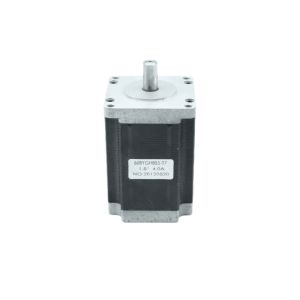

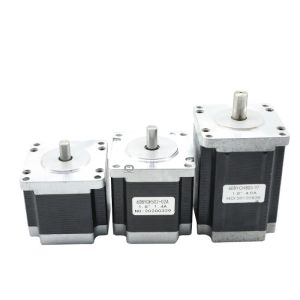

Factory Direct Sale Nema 24 60mm Hybrid Stepper Motor 1.8 Step Angle 4 or 6 Lead Wire 6V 4A
The hybrid stepper motor can be controlled by energizing every stator one by one. So the stator will magnetize & works like an electromagnetic pole that uses repulsive energy on the rotor to move forward. The stator’s alternative magnetizing as well as demagnetizing will shift the rotor gradually & allows it to turn through great control.
The stepper motor working principle is Electro-Magnetism. It includes a rotor which is made with a permanent magnet whereas a stator is with electromagnets. Once the supply is provided to the winding of the stator then the magnetic field will be developed within the stator. Now rotor in the motor will start to move with the rotating magnetic field of the stator. So this is the fundamental working principle of this motor.
Electrical Specification Of Hybrid Stepper Motor
| MODEL | STEP ANGLE (°/STEP) | LEAD WIRE (NO.) | VOLTAGE (V) | CURRENT (A/PHASE) | RESISTANCE (Ω/PHASE) | INDUCTANCE (MH/PHASE) | HOLDING TORQUE (KG.CM) | MOTOR HEIGHT L(MM) | MOTOR WEIGHT (KG) |
| 60BYGH402-13A | 1.8 | 6 | 2.4 | 3.0 | 0.8 | 1.6 | 10 | 56 | 0.77 |
| 60BYGH410-05A | 1.8 | 4 | 6.0 | 1.0 | 6.0 | 16 | 12.5 | 56 | 0.77 |
| 60BYGH502-03A | 1.8 | 4 | 5.32 | 1.4 | 3.8 | 10 | 12.5 | 64 | 1.00 |
| 60BYGH500 | 1.8 | 6 | 3.6 | 1.5 | 8.4 | 8.0 | 12.5 | 64 | 1.00 |
| 60BYGH805-56 | 1.8 | 4 | 2.8 | 4.0 | 0.8 | 3.5 | 23.5 | 87 | 1.34 |
| 60BYGH808A | 1.8 | 4 | 4.5 | 3.0 | 1.5 | 5.0 | 26 | 87 | 1.34 |
You can download our 60BYGH Hybrid Stepper Motor product brochure:60BYGH.pdf
