Metal Spandrel 4" 6" Stud Forming Machine ISO CE

    Buy cheap Metal Spandrel 4

    Buy cheap Metal Spandrel 4
    • Buy cheap Metal Spandrel 4
    • Buy cheap Metal Spandrel 4

    Metal Spandrel 4" 6" Stud Forming Machine ISO CE

    Ask Lasest Price
    Brand Name : CANGZHOU FMS
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

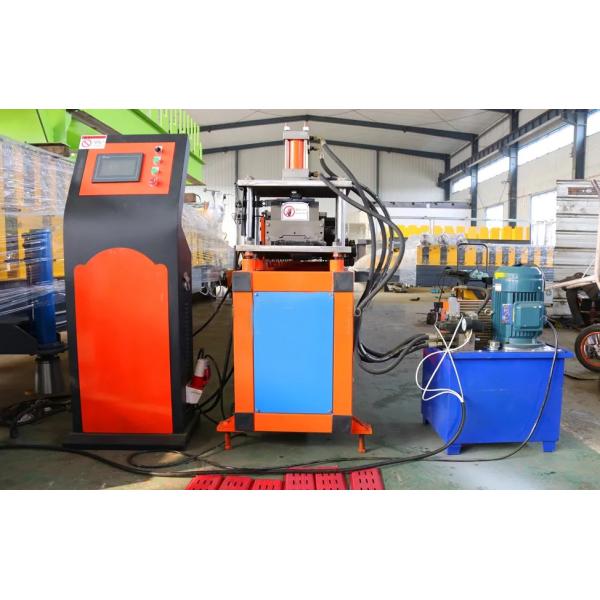

    Metal Spandrel 4" 6" Stud Forming Machine ISO CE

    Metal Spandrel 4" 6" Forming Machine In The Philippines


    Metal Spandrel 4" 6" Forming Machine In The Philippines.Metal Spandrel 4" 6" forming machine has different types and widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product .The finished goods Spandrel roof is made from pre painted metal sheet or pvc materials.Spandrel has a functional beauty for a perfect finish on eaves, ceilings & overhangs.

    This PLAIN SPANDREL roof is made from premium Superlume, a steel substrate coated on both sides with an Aluminum-Zinc alloy. This is manufactured using state-of-the-art Non-Oxidizing Furnace technology. The composition of the coating alloy is: 55% Aluminum 43.4% Zinc 1.6 % Silicon
    This unique coating will translate to significant cost savings for any user of products made from Superlume because the coating alloy will protect the steel against corrosive environments for years. The excellent corrosion resistance of Superlume is a result of combined protection of the barrier effect of Aluminum and the sacrificial or galvanic protection of Zinc on the surface of the steel.
    The advantage of decorative clip roof panel roll forming machine with the new flush wall / soffit / underdeck profile
    1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
    2.The surface of the final product is very smooth and beautiful without any scratch on the surface.
    3.It has advantage of pretty appearance, durable using and so on.

    Specification


    No.
    Metal Spandrel 4" 6" Forming Machine In The Philippines
    1
    Suitable to process
    Color alu-zinc steel coil/Aluminium Coil
    2
    Roller
    16Rows
    3
    Dimensions
    7.0*1.3*1.55m
    4
    Motor Power
    7.5Kw
    5
    Pump Station Motor
    5.5Kw.Lichao Brand
    6
    Thickness of the plate
    0.6-1.2mm
    7
    Productivity
    10-15m/min
    8
    Material of the cutting blade
    Cr12,Quenched treatment 58℃-60℃
    9
    Diameter of the roller
    Φ80mm
    10
    Weight
    About 4800kgs
    11
    Main structure of the machine
    400H beams
    12
    Processing precision
    Within 1.0mm
    13
    Side panel of machine
    18mm
    14
    Chain Wheel and Cycle Chain
    1 Inch
    15
    Voltage
    380V 50Hz 3phases or as customer's need
    16
    Control system
    PLC control (Delta)
    17
    Frequency system
    Delta
    18
    Drive mode
    Motor driver
    19
    Touch screen
    Delta
    20
    Rolling materials
    45# forging steel with chromium plate
    21
    Length Tolerance
    ±2mm

    Guarantee

    1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
    2. Repairs will not be performed even during the guarantee period in the follow circumstances

    - Damage occurs due to a natural disaster

    - Malfunction occurs due to user error

    - Malfunction occurs due to modifications

    - Malfunction occurs due to further movement or shipment after installation

    Payment terms

    40% in advance as down payment
    60% is paid before the shipment is processed

    Delivery

    FOB: Tianjin Xingang Port
    The Delivery Time: 30 days after the down payment is received.
