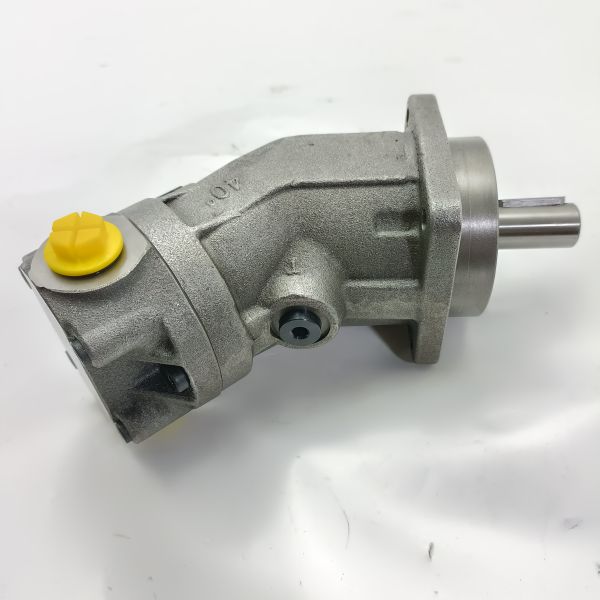

Safety instructions: -- A2FO pumps are designed for use in open loops. Project planning, installation and commissioning of axial piston
units must be carried out by qualified personnel.
-- Read the instruction manual thoroughly before using the axial
piston unit. On request from Bosch Rexroth.
- There is a risk of burning of the axial piston unit during and
shortly after operation. Appropriate safety measures should be
taken (e.g. wearing protective clothing).
-- The characteristics of the axial piston unit may vary with
different operating conditions (operating pressure, oil
temperature).
- Working pipeline oil port:
· Oil opening and fixed thread are designed according to maximum
specified pressure. The manufacturer of the machine or system must
ensure that the safety factor of the connecting elements and lines
meets the specified operating conditions (pressure, flow, hydraulic
fluid, temperature).
· Work line oil outlet and functional oil outlet are only used for
hydraulic line.
- You must follow the data and instructions contained here.
-- The product cannot be approved as a component complying with ISO
13849 general mechanical safety concepts.
-- Relief valves will be installed in the hydraulic system.
-- Use the following tightening torque:
Joint: Please refer to manufacturer's instructions for tightening torque
of joints to be used.
Mounting bolts: For mounting bolts with ISO metric threads to DIN 13 and ASME B1.1
threads, it is recommended to check the tightening torque of
individual boxes according to VDI 2230.
Threaded hole of axial piston unit: The maximum allowable tightening torque MG Max is the maximum for
threaded holes and shall not exceed this value.
Locking screw: For metal locking screws supplied with axial piston units, the
tightening torque MV required for the locking screws shall be used.
|
