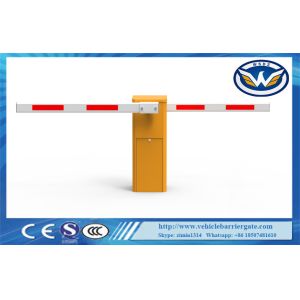

IP54 Heavy Duty Access Control Vehicle Barrier Gate With Two Booms
Parking lot Barrier Gate
Quick details:
1. Doube arm with two machine core in one housing.
2. Speed adjustable from 2.8s to 6s
3. 3rd DC brushless motor
4. Rated power: 150W
Parameters of Vehicle barrier gate:
| Working temperature | -35~+65℃ |
| Power supply | 24V DC |
| Open/close speed | 2.8s to 6s |
| Rated power | 150W |
| Driving method | DC brushless motor |
| Output torque | 56.8N.m |
| Protection grade | IP54 |
| Motor no load speed | 1850r/min |
| Max boom length(straight/ telescopic) | 6m |
Vehicle Barrier Gate Features:
3.1 The running speed can be adjusted from 2.8s to 6s
3.2 Can be quickly interchanged
3.3 Open the barrier gate by motor wheel when power off
,automatically reset after power on
3.4 Curved crank arm three- link movement structure, the operation
is stable
3.5 Wireless remote control control open/close
3.6 Auto reverse function(force adjustable)
3.7 Infrared photocells connector is available
3.8 Loop detector connector is available.
The parameter for selecting the spring
| Arm type | Length of arm | Spring |
| Type | Dimension(diameter*length) |
| 100*45straight arm | 6m | Tension spring | 4.5+5.5 |
| 5m | 4.0+5.5 |
| 4.5m | 4.5+4.5 |
| 4m | 4.5+4.0 |
| 3.5m | 4.5 |
| 3m | 4.5 |
| 80*45straight arm | 6m | 5.5+4.0 |
| 5m | 5.5+4.0 |
| 4.5m | 4.5+4.5 |
| 4m | 4.5+4.0 |
| 3.5m | 4.5 |
| 3m | 4.0 |
| Two fence arm | 4.5m | 5.5+5.5 |
| 4m | 4.5+5.5 |
| 3.5m | 4.5+4.5 |
| 3m | 4.5+4.5 |
| 90 degree arm | 5m | 5.5+4.5 |
| 4.5m | 5.5+4.5 |
| 4m | 4.5+4.5 |
| 3.5m | 4.5+4.5 |
| 3m | 4.5+4.0 |
| 3 fence arm | 4.5m | 5.5+6.8 |
| 4m | 5.5+5.5 |
| 3.5m | 4.5+5.5 |
| 3m | 4.5+4.5 |
| Remark:6.8yellow,5.5blue,4.5red,4.0 green |
Vehicle barrier gate usage:
1. Airport, Toll station, parking lot, community, school, hospital,
shipping mall
After-sale Service:
1. Motor is one year warranty, remote and arm do not include.
2. 24 hours on time technology support
3. Free spares for replacement( not includes shipping cost)
Vehicle Barrier Gate FAQ:
Q1.Who we are?
We are based in Shenzhen,Guangdong, China, was founded in 2011,is
the professional manufacturer
of high-end intelligent parking barrier gate.
Q2.why should you buy from us not from other suppliers?
1. One year free service is supplied(not including the arm and
remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which
accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term
relatioship between us.
6. Price can be negotiable when you have big order quantity.
Q3.How about payment terms our company provide?
A: T/T
Q4.Which is your min order?
A: 1 piece
Q5.Model color size and craft for all barrier gates can be
customized?
A: Yes, we can, welcome OEM & ODM. We also can put logo of your
company on product
