STAINLESS STEEL FLAT BAR ASTM A276 SS304 HOT ROLLED SUPERIOR QUALITY

STAINLESS STEEL FLAT BAR ASTM A276 SS304 HOT ROLLED

Stainless steel bars include stainless steel black bars, stainless steel bright bars. stainless steel round bars. stainless steel square bars. stainless steel hexagonal bars. stainless steel special-shaped bars, stainless steel free-cutting bars, etc
The surface of the stainless steel bright rod is bright, that is. the hot-rolled stainless steel black rod is cold-drawn through a cold rolling mill to remove the black color on the surface. Stainless steel bright rods are generally cold drawn. finely ground or polished, with good surface brightness and wide applications.
Stainless steel black bar is our customary name. The proper term is stainless steel hot-rolled bar, which is a stainless steel bar that is hot-rolled Since the stainless steel bar comes out of the hot rolling furnace. the temperature will be very high, and the surface will be black when it is naturally cooled.

Difference between flat bar and steel plate

The main difference for both of flat bar and steel plate is about technology craft. The flat bar steel belongs to structural steel such as angle bar and steel channel, etc. with molding method of hot rolled and cold drawn. Its hot rolled flat bar is width with max 150mm, and thickness with max 60mm. However flat bar's edge is circular arc.

The flat bar steel is widely used. It looks like a slab cut from a common steel plate, but it is actually hot rolled. The edge of flat steel is called rolling edge. Rolling edge guarantees the strength of its edge.

Specifications

Product name	Stainless Steel Flat and Angle Bar
Place of origin	China
Brand name	YUHONG
Standard	JIS, AISI, ASTM, GB, DIN, EN
Grade	304, 304L, 304H, 309S, 310S, 316L, etc.
Technique	Hot rolled, Cold drawn
Dimension	Equal or Unequal
Thickness	as your request
Length	as your request
Surface	Bright,black,sand Blast,polishing,pickling,etc
Application	Electric Tower, Bridge Manufacturing, Chemical Engineering, Railway Construction, Building Structure, Workshop Building, etc.

A276 Stainless Steel 304 Chemical Compositions

Grade	C	Mn	Si	P	S	Cr	Ni	N
SS 304	0.08 max	2 max	0.75 max	0.045 max	0.030 max	18 – 20	8 – 11	-
SS 304L	0.035 max	2.0 max	1.0 max	0.045 max	0.03 max	18 – 20	8 – 13	-
SS 304H	0.10 max	2.0 max	0.75 max	0.045 max	0.03 max	18 – 20	8 – 10.5	-

A276 Stainless Steel 304 Mechanical Properties

Grade	Tensile Strength ksi (min)	Yield Strength 0.2% ksi (min)	Elongation %	Hardness (Brinell) MAX	Hardness (Rockwell B) MAX
304	75	30	40	201	92
304L	70	25	40	201	92
304H	75	30	40	201	92

A276 Stainless Steel 304 Physical Properties

SS 304/304L
Density lbm/in3	Thermal Conductivity (BTU/h ft. °F)	Electrical Resistivity (in x 10-6)	Modulus of Elasticity (psi x 106	Coefficient of Thermal Expansion (in/in)/°F x 10-6	Specific Heat BTU/lbm -°F	Melting Range(°F)

at 68°F: 0.285	9.4 at 212°F	28.3 at 68°F	28	9.4 at 32 – 212°F	0.1200 at 68°F to 212°F	2500 to 2590
	12.4 at 932 °F	39.4 at 752°F		10.2 at 32 – 1000°F
		49.6 at 1652 °F		10.4 at 32 – 1500°F
SS 304H
Density lbm/in3	Thermal Conductivity (BTU/h ft. °F)	Electrical Resistivity (in x 10-6)	Modulus of Elasticity (psi x 106	Coefficient of Thermal Expansion (in/in)/°F x 10-6	Specific Heat BTU/lbm -°F	Melting Range(°F)

at 68 °F	at 68 – 212°F	at 68 – 1600°F	at 212°F	at 932°F	at 32 – 212°F	in tension (E)
0.285	9.2	11	9.4	12.4	0.12	29 x 106

Product Features

1. Corrosion resistant
2. Accurate dimensions
3. Can sustain high pressure & temperature load
4. Rust proof finish
5. Smooth transition from flange thickness to pipe
6. Ensure excellent stress distribution

Applications

1. Electric Tower
2. Bridge Manufacturing
3. Chemical Engineering
4. Railway Construction
5. Building Structure
6. Workshop Building

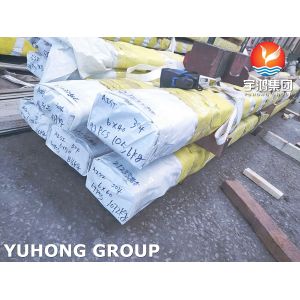

Packing
