Industrial Suspension Air Springs Firestone W01-358-7800/7818 3 Convoluted Helper Springs

Industrial Suspension Air springs Firestone W01-358-7800/7818 Triple Convoluted Helper Springs

Refer NO.

CONTITECH FT 530-32 333

CONTITECH FT 530 32 333

CONTITECH FT 530-32 325

CONTITECH FT 530 32 325

FIRESTONE W01-358-7800

FIRESTONE W01 358 7800

FIRESTONE W013587800

FIRESTONE W01-358-7818

FIRESTONE W01 358 7818

FIRESTONE W013587818

FIRESTONE FLEX 313D

GOODYEAR 3B14-360

GOODYEAR 3B14 360

GOODYEAR 3B14-359

GOODYEAR 3B14 359

GOODYEAR FLEX 578-93-3-350

GOODYEAR FLEX 578 93 3 350

GOODYEAR FLEX 578933350

AIRKRAFT 115070

AIRKRAFT 116052

Specifications and Detailed Technical Parameters: 3B7800

• Nut/blind nut

Top plate screw (nut) teeth: 4×1/2-13UNC

Bottom cover plate screw (nut) teeth: 4×1/2-13UNC

Screw Center Distance: 158.8mm

• Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPT

Distance from air hole to screw: middle

• Rubber Bellows

Top plate diameter (width): 289mm

Diameter (width) of the bottom cover plate: 289mm

Rubber Bellows MAX Diameter: 356mm

Design Height: 9-13 inches / 229mm-330mm

Maximum Height : 460 mm

• Bumper block/bumper block

Without bumper block

• Belt loop/Belt loop

With belt loop: Two belt loop

Other types:

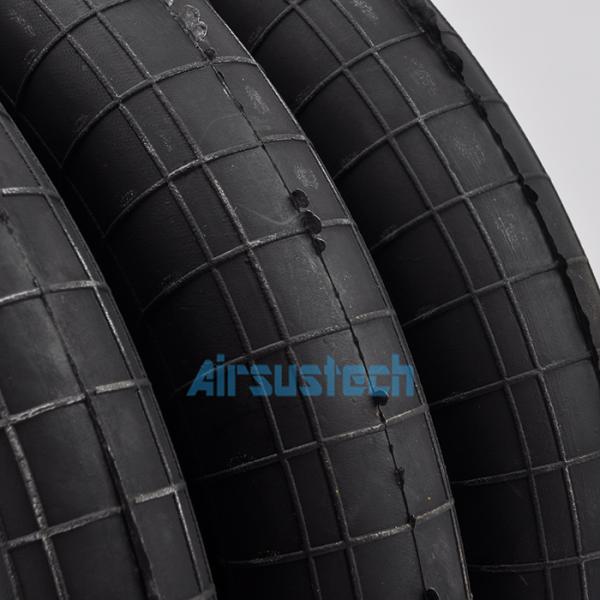

The related picture of 3B7800

Technical characteristics of rubber air springs

Under certain internal pressure and height conditions, the rubber air spring assembly passes the outward thrust of the upper and lower base end faces, that is, limits the outward extension tension of the rubber air spring. A distance set between the upper and lower base end faces of the rubber air spring assembly. This distance is the origin of the deformation of the rubber air spring, and the rubber air spring vibrates up and down at the origin when it works.

1. At the design height of the assembly, the air pressure allowed to be charged into the rubber air spring is generally selected within the range of 0.4-0.8MPa.

2. The rubber air spring assembly is the maximum allowable height that can be stretched after charging the maximum working air pressure at the design height. 3.7 Minimum height H

3. The difference between the maximum height and the minimum height of the rubber air spring assembly. Rubber air springs can vibrate in this range.

4. The maximum outer diameter of the rubber air spring during the entire working stroke after being charged with the maximum working pressure.

5. When the rubber air spring is subjected to the blasting test, the maximum pressure reached in the rubber air spring during blasting.
