MINI OTDR
(Optical Time-Domain Reflectometer)
Product Overview

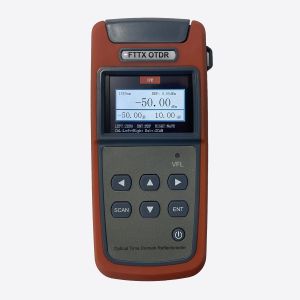

Mini OTDR is the most portable test instrument in the industry. It
adopts the OTDR technical principles and integrates the powerful
analysis software, which enables the OTDR fiber ranger detect fiber
faults location more accurate and easier.
Main Characteristics
*Portable, rugged, lightweight; Easy to use.
*More accurate testing results and better repeatability.
*Automatic Pulse Width Control design to ensure a convenient
operation.
*Easy to identify the faults location.
*Built-in visual fault locator (VFL), conveniently to find the
faults in dead zone.
*Dust, water and shock proof, designed for field use.
*Long battery life, up to 5000 measurements operation.
*2.6 inch screen, data saves in SOR format.
1.Technical Specifications
| Model | MINI OTDR |
| Wavelength | 1310nm or 1550nm |
| Type of fiber | 9/125um SM Fiber |
| Connector | FC,SC/PC |
| Dynamic Range | 22dB |
| Pulse Width | 5ns~ 8000ns,Auto |
| Measurement | m |
| Event blind zone | 3m |
| Attenuation blind | 10m |
| Range accuracy | ±(1m+2×10-4×distance) |
| OPM | -50~+26dBm |
| 850/1300/1310/1490/1550/1625nm |
| VFL | ≥10mW |
| Optical Light Source | 1550nm |
iLOM(Event Map)
| |
| Power Supply | 3pcs of Dry battery |
| Battery Work time | ≥2000 times measure |
| Save Data | ＞500 |
| Work Temperature | -5~40℃ |
| Save Temperature | -10~60℃ |
| Humidity | 0~85%(no condensation) |
| Net weight | 300g |
2.Button Description
1,
: On / off key, when in power-on, short press switch to auto-off
function ；long press about 3s off. When the top right corner of LED
show
,The instrument will automatically shut down for about 10 minus in
the state of no key operation.
2,SCAN, Start OTDR module to test the fiber. Press about 6s, enter
auto cycle test,press exit again3;
3▲-View the previous measurement or choose previous option
4 ▼-View the next measurement or choose next option
5,◄--View a measurement to the left or select an option to the left
6,►-View a measurement to the right or select an option to the
right
7,ENT select the confirm butt
on or deselect
8,VFL light shows starting work
Configuration List
MINI OTDR
3pcs of dry battery.
USB, SC adapter;
Oxford instrument kit,
User manual
if want more information please kindly contract
