Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W

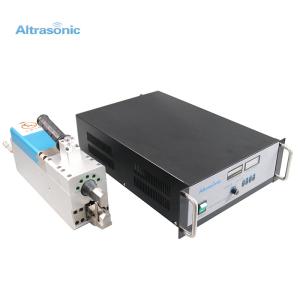

    Buy cheap Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W from wholesalers

    Buy cheap Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W from wholesalers
    • Buy cheap Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W from wholesalers
    • Buy cheap Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W from wholesalers
    • Buy cheap Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W from wholesalers

    Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W

    Ask Lasest Price
    Brand Name : Altrasonic
    Model Number : HS-2030F
    Certification : CE
    Price : negotiation
    Payment Terms : Western Union , L/C, T/T
    Supply Ability : 3000 PCS per month
    Delivery Time : 15 days after receiving from the payment
    • Product Details
    • Company Profile

    Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W

    20kHz 3000W Copper Tube Sealing Device Ultrasonic Metal Welding Machine


    Description:


    Ultrasonic welding uses high-frequency vibration waves to transmit to the surfaces of two objects to be welded. Under pressure, the surfaces of the two objects are rubbed against each other to form fusion between the molecular layers.


    Specification:


    Model
    HS-2030F
    Power
    3000W
    Pipe diameter
    Φ2-12mm
    Working air pressure
    0.05-0.09MPa
    Ultrasonic frequency
    20KHZ
    Working voltage
    220V

    Applications:


    1. Air conditioning HVAC system and refrigerator copper pipe sealing.


    2. Capillary and bulb temperature sensor.


    3. Products that require sealing and welding of copper or aluminum pipes.


    4. Diameter of weldable metal pipe: 2~12mm.


    Advantages:


    1. Ultrasonic copper tube sealing machine is suitable for sealing copper tubes such as medicine, cosmetics, health products, food, lubricating oil, toothpaste, shoe polish, facial cleanser, glue, etc.


    2. The ultrasonic copper tube tail sealing machine adopts the Taiwan core circuit, and uses the ultrasonic principle to seal the tail of the copper tube and the composite tube. It has good working stability, high efficiency and superior performance of each component.


    3. The ultrasonic copper tube sealing machine has a small appearance, humanized design, and easy operation.


    4. Simple operation, convenient assembly and maintenance.


    5. The ultrasonic copper tube sealing machine can store 9 sets of parameters for production according to different products.


    6. Automatic calibration frequency function of ultrasonic copper tube sealing machine.


    7. Electronic voltage stabilization function.


    8. Digitally control the amplitude with an accuracy of +/- 1μm.


    Pictures:

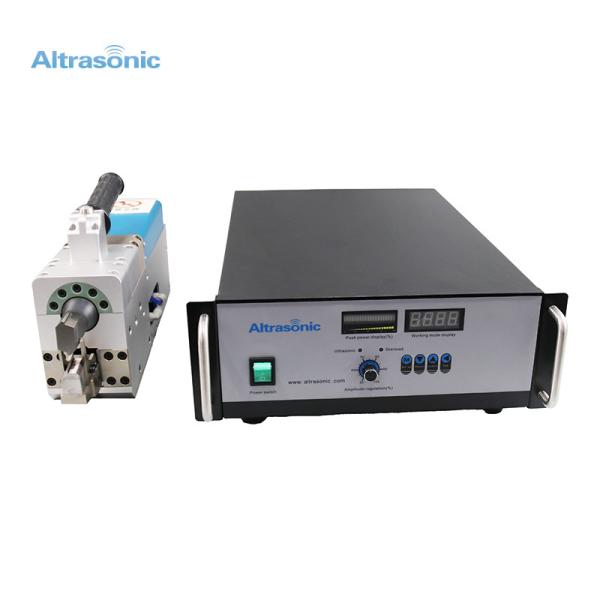

    Quality Automatic Calibration Ultrasonic Metal Welding Machine 20kHz 3000W for sale
