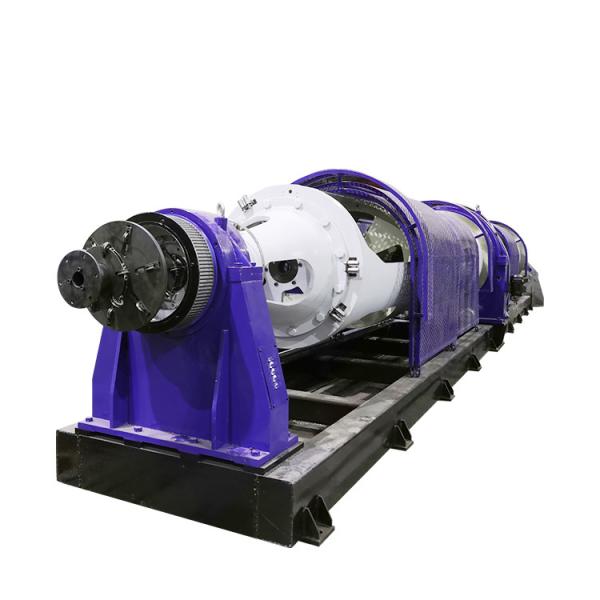

    1+6 ACSR Tubular Stranding Machine With Three Big Bearing

    GOOD PERFORMANCE 1+6 TUBULAR STARNDING MACHINE (WITH THREE BIG BEARING)


    Objectives:

    • This machine will be suitable for stranding 1+6 bare Al/Cu wire, ACSR and aluminum alloy wire.
    • This Machine will be suitable for Steel Twisting of ACSR Core Wire
    • This machine will be capable for AAC/AAAC/ACSR/COPPER STRANIDNG/INSULATED CORE TWISTING.
    • Capable for ACSR Conductor Stranding and Steel Twisting and Stay Wire and Guy Wire
    • High speed and good performance
    • Trouble free operation
    • Easy operation and maintenance
    6.2.2.1Name of ManufacturerBEYDE TRADING
    6.2.2.2Country of OriginCHINA
    6.2.2.3Country of MadeCHINA
    6.2.2.4Country of ShipmentCHINA TIANJIN
    6.2.2.5Model No. of the Machine630/1+6
    6.2.2.6Stranding single wire diameter
    Aluminum Alloyø1.5-ø 3.5mm
    Aluminumø1.5-ø 5.29mm
    Copper wireø1.2-ø 4.5mm
    Mild Steel wireø1.2-ø 5.0mm
    6.2.2.7Max stranding diameterMax Diameter 15mm
    6.2.2.8Speed of frame carriage
    6.2.2.96 Bobbin CageMax 600 rpm
    6.2.2.10Haul off liner speed18-125 m/min
    6.2.2.11Motor power of capstan37 KW AC SIEMENS/ABB/ Schneider
    6.2.2.12Take up motor power7.5 KW AC SIEMENS/ABB/ Schneider
    6.2.2.13Bobbin size inside frame carriage

    PND630

    Flange : 630MM

    Barrel : 350 MM ( Or as Required)

    Traverse : 400 MM

    Overall Width: 475 MM

    6.2.2.14Haul-off capstan sizeΦ1500mm(Dual Wheel Grooved Capstan)
    6.2.2.15Stranding pitch (step-less)30 -500mm ( Infinitely Variable)
    6.2.2.16Center pay-off reel type630-1250mm
    6.2.2.17Take-up reel(column type)PN800~PN1600(Buyer provide the drawing)
    6.2.2.18Total installation power37KV
    6.2.2.19Regular running power consumptionTo be mentioned by bidder
    6.2.2.20Compressed Air consumptionTo be mentioned by bidder
    6.2.2.21Operation directionAs per BCSL requirement and It will be confirmed during signing of contract.
    6.2.2.22Noise Level< 85 dBA (except for main motor)
    6.2.2.23Machine dimension L×W×H25X3X0.7M
    6.2.2.24Height of center line of the equipment745mm or Standard
    6.2.2.25Machine Main colorRAL 5012 Light blue or BCSL requirement
    6.2.2.26BearingsNSK/FAG/NTN/SKF
