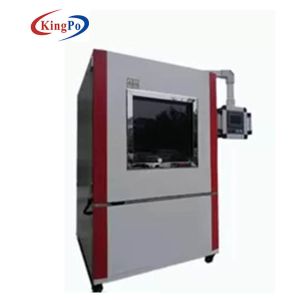

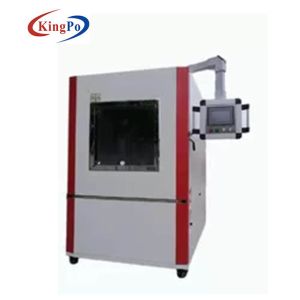

    SUS202 Environmental Test Chambers

    SUS202 Environmental Test Chambers


    Dust Test Chamber


    Function Description

    The chamber is applicable to check whether the device and components are ensured good performance when electrical product and its outer case are sealed in an excessively dusty environment,which is of scientific design and vividly simulate various environment like dusty one.Intelligent PLC control system make dust amount reaches test requirement.The top-down and non-laminar flow dust fall vertically on the sample and then vibrate the collecting funnel to circulation fan.(Note:Internal size of non standard dust test chamber can be customized.)


    Technical Parameter

    type

    KP-HW1000

    Interior dimension

    D1000XW1000XH1000MM

    Rated voltage

    380V 50HZ

    vacuum pump(IP6X)

    0~30Kpa(optional accessory)

    Air pressure(optional)

    0.5~0.8MPa

    Test time

    0~99h 59min

    Load cycle(optional)

    0~99h 59min

    Blowing dust period control

    1s~9999min

    Flow rate

    ≤2m/s

    Test grit(talcum powder)dosage

    2kg/m3-4kg/m3

    Interior material

    SUS202#stainless steel/ cold rolled sheet with plastic spray

    Exterior material

    SUS202#stainless steel

    Exterior dimension

    D1200 X W1500 X H1850Mm

    controller

    Independent R&D PLC touch screen controller

    Power

    2KW(according to load requirements)

    Metal screen mesh

    nominal wire diameter 50µm;nominal spacing between wires75µm


    202# SS Funnel Type Dust Resistance Test Chamber External Size 1000*W1000*H1000mm 0

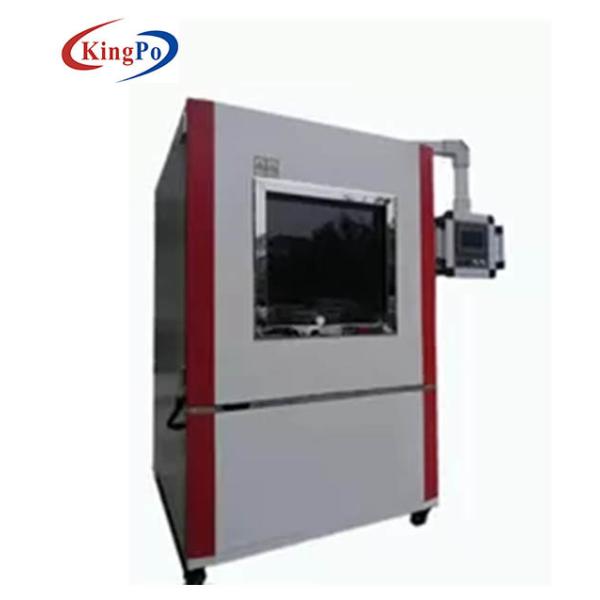

    Quality SUS202 Environmental Test Chambers for sale
