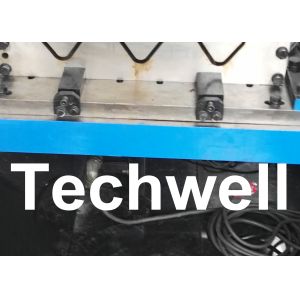

Galvanized Steel Guardrail Roll Forming Machine with PLC control

Galvanized Steel Highway Guardrail Roll Forming Machine Construction Machine

Summary of W Beam Guardrail Roll Forming Machine

The machine consists of coil loading, leveling, flatting and head cutting, punching, cold roll forming, hydraulic cutting, automatic stacking system, electric control system, and hydraulic system. Machine flatting hot roll steel, punching, cold roll forming and cutting off the highway guardrail as required with high production efficiency, automation and low labor intensity.

Feeding trolley

Function: send the coil material to the position of the uncoiler and help to wear the coil material on the uncoiler spindle.

The feeding trolley is composed of a walking chassis and a lifting rack.

The trolley seat is on two rails, and the lifting material rack is pushed by the oil cylinder to lift the material coil to the same height as the spindle axis of the uncoiler. The motor drives the walking chassis to move, and the material coil is wound on the spindle of the uncoiler. After the feeding is in place, the coil hold the material and tighten it. Then the material frame will be lowered and the trolley drived back to the next loading position.

Uncoiler

Function: Unwinding and discharging

Structure: The uncoiling machine is hydraulic expansion and contraction type. The material is fed into the uncoiler reel and then the drum is expanded and tightened with auxiliary support device. It is active rotation with damping.

• Material Thickness: 2-4mm
• Forming Station: 15 excluding the feeding rollers and leveling rollers
• 7 Rollers leveling
• Principal Axis Diameter: ￠100mm
• Working Speed: 10-12m/min
• Main Power: 30KW
• Leveling Power: 2.2KW
• Hydraulic Power: 15KW
• Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
• Gross Weight of Machine: about 18 Ton
• Voltage: 380V, 3 Phase 50Hz

Main Components

• Hydraulic Decoiler ------------------------------------------ 1 Unit
• Leveling and Feeding Guide -------------------------------- 1 Unit
• Punching Device ------------------------------------------- 1 Unit
• Roll Forming Machine -------------------------------------- 1 Unit
• Hydraulic Cutting ------------------------------------------ 1 Unit
• Hydraulic Station ------------------------------------------ 1 Unit
• PLC Contol System ---------------------------------------- 1 Unit
• Runout Table ---------------------------------------------- 1 Unit
• Spare Coupling -------------------------------------------- 1 Unit

Reference Drawing

Our Advantage

• High Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

Wuxi Techwell Machinery Co.,Ltd is a professional manufacturer specializing in the developing and exporting of cold roll forming machines and insulated sandwich panel machines and Slitting cutting machines.

Roll Forming Machines: Metal roof & wall panel roll forming machine, steel tile roll forming machine, dual level roll forming machine, C/Z/U/L shaped steel roll forming machine, drywall stud and track roll forming machine, steel floor deck roll forming machine, highway guardrail roll froming machinem downspout roll forming machine, rainwater gutter roll forming machine, portable downspout / gutter machines, door frame roll forming machine, roller shutter door roll forming machine, no-girder k span arched panel roll forming machine, slitting & cutting, roof curving machine, stacker machine and so on.

Insulated Sandwich Panel Machines: PU sandwich panel machine, rubber belt pu sandwich panel machine, continuous pu sandwich panel machine, EPS sandwich panel machine, rockwool sandwich panel machine, eps & rockwool sandwich panel machine, mineral wool sandwich panel machine and so on.

Wuxi Techwell engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and old customers. In paticular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, through design and installation. Our goal is " Future by heartiness, faith leads to the world".

Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
