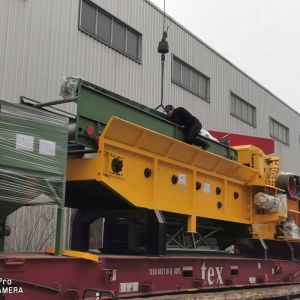

Large Wood Pallet Crusher Machine Chain Belt Feeding 10t/h
Wood Pallets Crusher is a new type of comprehensive wood crushing
equipment specially engaged in waste construction formwork, bamboo
plywood, wooden shelves, brackets, wooden packing boxes, wooden
pallets, etc crushing .The final product is a small wood chip of
about 30mm.
This Wood Pallets Crusher is widely used in the pretreatment stage
of biomass pellet processing plants, waste template processing
plants, bamboo plywood processing plants, wood-based panel plants,
composite board plants, power plant boiler raw material combustion,
etc., as well as individual wood processing plants.
The operation principle of the wood pallet crusher also drives the rotor to run at a high
speed under the link of the three-belt through the supporting power
to crush the materials. The rotor disc of this machine is divided
into two parts.
One is hammer type, and the other is blade type. The hammer type
rotor is suitable for crushing pallets, building templates, these
plate materials with a small number of nails, blade rotationThe sub
is suitable for broken branches, sticks and some rounds with larger
diameters.
Technical Parameter :
| Type | HX4000 | HX5000 | HX6000 | HX7000 | HX8000 |
| Roller Spped (r/min) | 650 | 800 | 800 | 800 | 560 |
| Roller Diameter (mm) | 800 | 800 | 800 | 1100 | 1400 |
| Blade/Hammer QTY | 4/24 | 4/28 | 4/30 | 4/36 | 4/46 |
| Main Power (kw) | 160 | 200 | 250 | 280 | 400 |
| Capacity (t/h) | 10-15 | 15-20 | 20-30 | 30-50 | 50-70 |
| Feeding Size (mm) | 1260*600 | 1400*600 | 1600*600 | 1600*800 | 2000*1000 |
| Feeding Method | Chain feeding |
| Total weight (t) | 15 | 17 | 21 | 28 | 51 |
| Outsize(m) | 8*2.45*2.48 | 8.1*2.35*2.5 | 9.3*2.8*3 | 10.8*2.8*3.4 | 13.3*3.15*3.9 |
Application Raw Material ；
The highligh of wood pallet crusher machine :
- Chain belt conveyor feeding ,Q345 steel plate material.(Wood crusher adopts chain plate type intelligent feeding which is
guarantee smooth feeding to increase feeding speed .
- Iron removal device.
- The machine can smash wood with nails, and install an iron removing
device at the discharge end of the machine to separate the wood from the
nails
- Feed roller adopts 45# Mn steel, with strong abrasion and precise bite force, the strength and
performance higher than welded parts.
- Hammers of Wood Crusher,hard wood, wood pallets, waste building templates or other wood,
for large wood crusher, the chipping room will equip with hammers
instead of traditional knifes.
