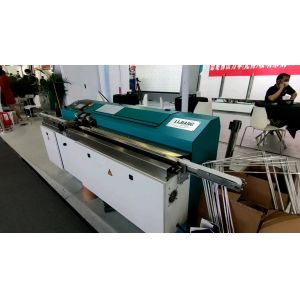

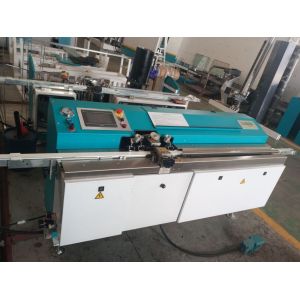

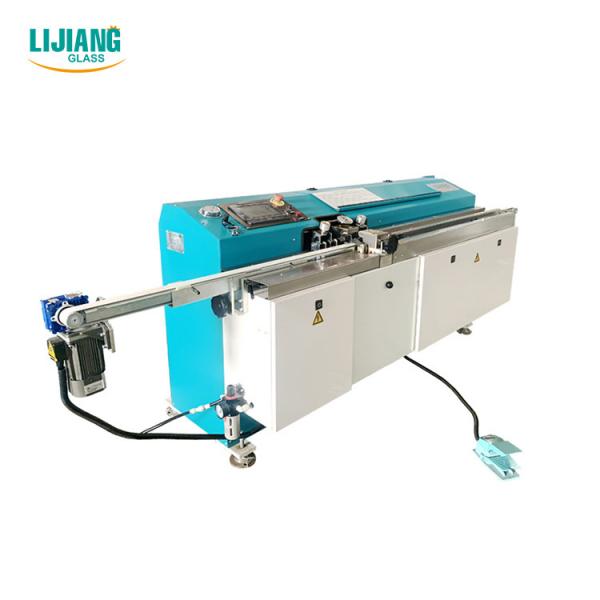

    PLC Automatic Butyl Extruder Machine For Insulating Glass

    Ask Lasest Price
    Brand Name : LIijiang Glass
    Model Number : LJTB01
    Certification : CE
    Price : USD 12000.00 - 11000.00
    Payment Terms : L/C, T/T
    Supply Ability : 50sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    PLC Automatic Butyl Extruder Machine For Insulating Glass

    Automatic Butyl Extruder Machine Butyl Adhesive Coater for Insulating Glass
    Hollow Glazing Processing Hot Sale on March Expo
    Product Description
    This type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
    LJTB01 Butyl Extruder Machine
    Main Technical Parameter
    Item.
    Spec.
    filling aluminum frame max size
    2000mm*2000mm
    filling aluminum frame min size
    300mm*250mm
    molecular sieve diameter needed
    0.5-0.9mm
    Dimension
    1300mm*1100mm*3650mm
    Air source
    ≥0.65MPa
    Total power
    220V 50Hz 1.5Kw
    Name
    Brand
    PLC
    Germany SIEMENS
    Triplet
    TAIWAN AIRTAC
    Low voltage electrical apparatus
    Germany SIEMENS
    Solenoid valve
    TAIWAN AIRTAC
    Sensor
    Korea AUTONICS
    Gas driller
    Taiwan BOA
    Guide
    Taiwan TBI
    Switch power
    Taiwan TEND
    Above information is the Specification. from Jinan LIJIANG Glass Standards.
    If customers want to know more details of Spec., please let us know.
    Advantages & Features

    Benefits & Advantages
    1.The machine height of can be adjusted according to the size of spacer frame 2.The machine time could be adjusted 3.The machine adopts auto loading and replenish 4.The machine adopts auto drilling, filling and sealing function 5.It use Germany Siemens PLC control system 6.The touching screen interface, simple and visible 8.It adopts vacuum pump loading device ,increase the loading speed 9.The desiccant filling machine could use big bucket desiccant ,save desiccant refill time, improve the work efficiency.

    The Unique ID Code Number
    All the electrical wires of the machine parts, have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.

    The Touching Screen Interface
    The touching screen interface, which the parts of machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.

    The Materials Bucket
    The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)

    The Electrical Component
    The electrical component are all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.
    Company Profile
    The Brief Information
    Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world. Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!
    00:00
    03:36
    Team

    Technician Team
    Jinan LIJIANG Glass, has own technician team, IG line and automatic sealing robot technician team have 6 experts which all have more than 15 years+ glass machine producing experience. Aluminum spacer bending and desiccant filling machine technician team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years, Service Team: Jinan LIJIANG Glass, has the own chinese domestic team and oversea service team. The whole team was included by 15 chinese engineers who worked in glass machine filed more than 20 years and 5 oversea engineers, two of them from india and others from south America and midle east. 24 hours online service and local engineer available, guarantee customers got timely service and solution.
    After Sale Service
    National Expo
    Glass International Expo
    National Glass Expo: Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa, Glass buildin in America, Mexico glass expo .Big Five In Dubai, Egpyt., and so on. Domestic Glass Expo: China glass , (Beijing /shanghai), Guangzhou.Glass Expo, and so on.
    Beijing Glass Expo
    Shanghai Glass Expo
    Guangzhou Glass Canton Fair
    Turkish Glass Exhibition
