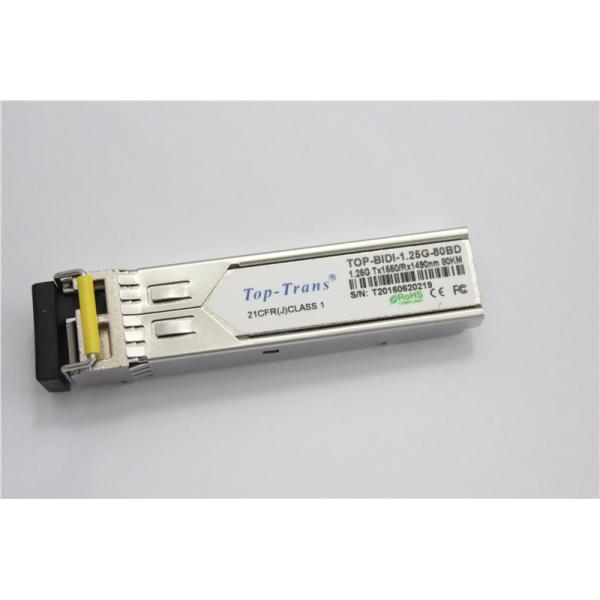

Toptrans BIDI 1.25G-80AD/BD SFP Optical Transceiver 80KM Rohs

BIDI 1.25G-80AD/BD Optical Transceiver 80KM Long Distance Fibre Modules

Optical Module 80Km Fetures:

●Up to1.25Gb/s data links

●DFB laser transmitter

●PIN photo-detector

●Up to 80KMon9/125μmSMF

●Hot-pluggable SFP footprint

●BIDILC/UPC type pluggable optical interface

●Low power dissipation

●Metal enclosure, for lower EMI

●RoHS compliant and lead-free

●Single+3.3V power supply

●Support Digital Diagnostic Monitoring interface

●Compliant withSFF-8472

●Case operating temperature Commercial:0°C to +70°C

Extended:-10°Cto +80°C

Industrial:-40°Cto+85°C

APPLICATIONS

●Switch to Switch Interface

●Fast Ethernet

●Switched Backplane Applications

●Router/Server Interface

●Other Optical Links

STANDARD

● SFP+MSA Compliant

● SFF-8472reversion9.5 compliant

● IEEE802.3-2005 compliant

● Telcordia GR-468-CORE compliant

Digital Diagnostic Functions

SFP 1.25G 80KM 1310&1550 transceivers support the 2-wire serial communication protocol as defined in the SFPMSA. It is

very closely related to the E2PROM defined in the GBIC standard, with the same electrical specifications.

The standard SFP serial ID provides access to identification information that describes the transceiver’s capabilities, standard

interfaces, manufacturer, and other information.

Additionally, SFP 1.25G 80KM 1310&1550 transceivers provide a unique enhanced digital diagnostic monitoring interface,

which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted

optical power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and

warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.

The SFPMSA defines a 256-byte memory map in E2PROM that is accessible over a 2-wire serial interface at the 8 bit

address1010000X(A0h).The digital diagnostic monitoring interface makes use of the 8 bit address 1010001X(A2h), so the

originally defined serial ID memory map remains unchanged. The interface is identical to, and is thus fully backward

compatible with both the GBIC Specification and the SFP Multi Source Agreement.

The operating and diagnostics information is monitored and reported by a Digital Diagnostics Transceiver Controller(DDTC)

inside the transceiver, which is accessed through a 2-wire serial interface. When the serial protocol is activated, the serial

clock signal (SCL,ModDef1) is generated by the host. The positive edge clocks data into the SFP transceiver into those

segments of the E2PROM that are not write-protected. The negative edge clocks data from the SFP transceiver .The serial

data signal(SDA,ModDef2) is bi-directional for serial data transfer. The host uses SDA in conjunction with SCL to mark the

start and end of serial protocol activation. The memories are organized asaseriesof8-bit data words that can be addressed

individually or sequentially.

Digital diagnostics for the TOP-BIDI-1.25G-80AD/BD are Internally calibrated by default.
