    Customized Stable Bushes Bimetal Bushing Bearing Steel Sleeve Bronze Bushing

    Ask Lasest Price
    Brand Name : Eternal Bliss
    Model Number : EB2031
    Certification : ISO9001-2008
    Price : $0.05 - $3.00/ Piece
    Payment Terms : by T/T or L/C, Western Union
    Supply Ability : 100,000.00
    Delivery Time : It depends on the quantity to be ordered.
    • Product Details
    • Company Profile

    Customized Stable Bushes Bimetal Bushing Bearing Steel Sleeve Bronze Bushing


    Customized High Quality Stable Bushes Bimetal Bushing Bearing Steel Sleeve bushing Bronze Bushing



    1. Name:Sintered Bronze Bushing


    2. Materials: Brass/ Bronze


    Specification:
    MATERIALBronze;Fe-Cu; MPIF standard F-0000-K23 ; FC-0200 ; FG-0303 SERIES
    WORKING TEMPERATURE:-40ºC ~ +200ºC
    DENSITY & GRAVITY:6.4-7.3g/cm3
    OIL IMPREGNATION RATE:15% - 23%
    GRAPHITE CONTENT RATE:1% - 3%Max
    SLIDING SPEED:6.0 [m/s]
    LOAD CAPACITY STATIC:10 N/mm2
    MAXIMUM PV VALUE:1.6 N/mm2•m/s
    LOAD CAPACITY DYNAMIC:5 N/mm2
    WORKING SPEED:2.5 m/s
    TYPE OF SHAPE:Cyclinder ; Flange ;Spherecial (with Ring)
    FOR LOAD DIRECTION:Radial , Thrust, Combined Radial and Thrust
    YIELD STRENGTH:15000 PSI
    SHAFT MOUNT TYPE:Press Fit

    Taper Bushings
    (Metric Bore)
    Taper Bushings
    (Inch Bore)
    NO.Bore RangeNO.Bore Range
    MIN.MAX.MIN.MAX.
    100892510083/81
    110892811083/81 1/8
    1210113212101/21 1/4
    1215113212155/81 1/4
    1310143513101/21 3/8
    1610144216101/21 5/8
    1615144216151/21 5/8
    2012145020125/82
    2017185020173/42
    2517166025173/42 1/2
    2525186025257/82 1/2
    3020257530201 1/43
    3030357530301 1/43
    3525359035251 1/23 1/2
    3535359035351 1/23 1/2
    40304010040301 3/44
    40404010040401 3/44
    45355511045352 1/44 1/2
    45455511045452 1/44 1/2
    50407012550402 3/44 1/2
    505070125505035

    QD Bushings
    NO.WEIGHT
    (KG)
    Bore Range
    Min.Max.
    JA0.363/81 1/4
    SH0.451/21 11/16
    SDS0.541/22
    SD0.681/22
    SK0.911/22 5/8
    SF1.591/22 15/16
    E4.087/83 1/2

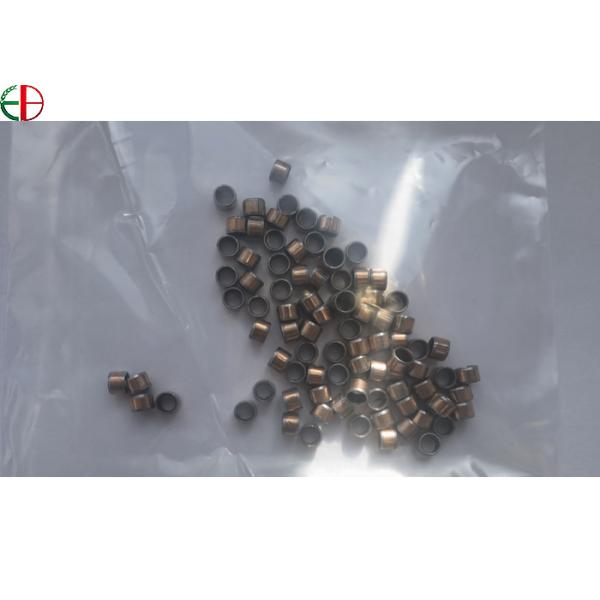

    3. Product Details Picture:
