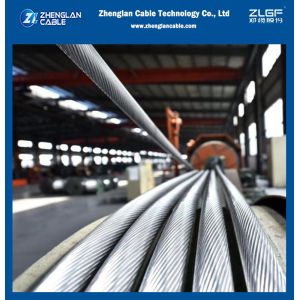

Aluminum Conductor Steel Reinforced ACSR code 300/50 Bare Aluminum Conductor transmission lines DIN 48204
Application
ACSR conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.
Bare Conductor Electrical Cable STANDARD
Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.
Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
Bare Conductor Electrical Cable CONSTRUCTION
ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.
By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.
ELECTRICAL PROPERTIES
| density@20ºC | Aluminium: 2.703 kg/dm |
| Galvanised Steel: 7.80 kg/dm |
| Temperature Coefficient@20°C | Aluminium: 0.00403 (°C) |
| resistivity@20°C | Aluminium: Should not exceed 0.028264 |
| linear Expansivity | Aluminium: 23 x10 (°C) |
| Galvanised Steel: 11.5 x10 (1/°C) |
SERVICE CONDITIONS
| Ambient Temperature | -5°C - 50°C |
| Wind Pressure | 80 – 130kg/m |
| Seismic Acceleration | 0.12 - 0.05g |
| Isokeraunic level | 10 – 18 |
| relative Humidity | 5 – 100% |
TECHNICAL DATA
| Numbers of Wires | Modules of Elasticity | Coeficient of linear Expansion |
| AL | STEEL | Kg/mm2 | Lb/in2 | 1/Cº | 1/Fº |
| 6 | 1 | 81 | 11.5 x106 | 19.1 x10-6 | 10.6 x10-6 |
| 6 | 7 | 77 | 11.0 x106 | 19.8 x10-6 | 11.0 x10-6 |
| 12 | 7 | 107 | 15.2 x106 | 15.3 x10-6 | 8.5 x10-6 |
| 18 | 1 | 67 | 9.5 x106 | 21.2 x10-6 | 11.8 x10-6 |
| 24 | 7 | 74 | 10.5 x106 | 19.6 x10-6 | 10.9 x10-6 |
| 26 | 7 | 77 | 10.9 x106 | 18.9 x10-6 | 10.5 x10-6 |
| 28 | 7 | 79 | 11.2 x106 | 18.4 x10-6 | 10.2 x10-6 |
| 30 | 7 | 82 | 11.6 x106 | 17.8 x10-6 | 9.9 x10-6 |
| 30 | 19 | 80 | 11.4 x106 | 18.0 x10-6 | 10.0 x10-6 |
| 32 | 19 | 82 | 11.7 x106 | 17.5 x10-6 | 9.7 x10-6 |
| 54 | 7 | 70 | 9.9 x106 | 19.3 x10-6 | 10.7 x10-6 |
| 54 | 19 | 68 | 9.7 x106 | 19.4 x10-6 | 10.8 x10-6 |
ACSR Conductor - DIN 48204 Standard
| Area | Standing and wire diameter | Overall diameter | | Nominal breaking load | Maximum resistance at 20°C | Current Rating |
| Nominal. | Actual | Total. |
| Al/Steel-- | Al | Steel | Total | Aluminum | Steel |
| mm2 | mm2 | mm2 | mm | mm | mm | kg/km | daN | Ω/km | A |
| 16/2.5 | 15.1515 | 2.22 | 18.1818 | 6/1.80 | 1/1.80 | 5.55 | 62 | 595 | 2.22222 | 105 |
| 25/4.0 | 24.2424 | 4.44 | 28.2828 | 6/2.25 | 1/2.5 | 7.77 | 97 | 920 | 1.11111 | 140 |
| 35/6.0 | 34.3434 | 6.66 | 40.4040 | 6/2.70 | 1/2.70 | 8.88 | 140 | 1265 | 1.11111 | 170 |
| 44/32.0 | 44.4444 | 32.3232 | 76.7676 | 14/2.00 | 7/2.40 | 11.1111 | 372 | 4500 | 1.11111 | 220 |
| 50/8.0 | 48.4848 | 8.88 | 56.5656 | 6/3.20 | 1/3.20 | 10.1010 | 196 | 1710 | 1.11111 | 210 |
| 50/30 | 51.5151 | 30.3030 | 81.8181 | 12/2.33 | 7/2.33 | 12.1212 | 378 | 4380 | 1.11111 | 223 |
| 70/12 | 70.7070 | 11.1111 | 81.8181 | 26/1.85 | 7/1.44 | 12.1212 | 284 | 2680 | 0.00000 | 290 |
| 95/15 | 94.9494 | 15.1515 | 110.110110 | 26/2.15 | 7/1.67 | 14.1414 | 383 | 3575 | 0.00000 | 350 |
| 95/55 | 96.9696 | 56.5656 | 153.153153 | 12/3.20 | 7/3.20 | 16.1616 | 712 | 7935 | 0.00000 | 352 |
| 105/75 | 106.106106 | 76.7676 | 182.182182 | 14/3.10 | 9/2.25 | 18.1818 | 891 | 10845 | 0.00000 | 385 |
| 120/20 | 121.121121 | 20.2020 | 141.141141 | 26/2.44 | 7/1.90 | 16.1616 | 494 | 4565 | 0.00000 | 410 |
| 120/70 | 122.122122 | 71.7171 | 193.193193 | 12/3.60 | 7/3.60 | 18.1818 | 90 | 10000 | 0.00000 | 410 |
| 125/30 | 128.128128 | 30.3030 | 158.158158 | 30/2.33 | 7/2.33 | 16.1616 | 591 | 5760 | 0.00000 | 425 |
| 150/25 | 149.149149 | 24.2424 | 173.173173 | 26/2.70 | 7/2.10 | 17.1717 | 605 | 5525 | 0.00000 | 470 |
| 170/40 | 172.172172 | 40.4040 | 212.212212 | 30/2.70 | 7/2.70 | 19.1919 | 794 | 7675 | 0.00000 | 520 |
| 185/30 | 184.184184 | 30.3030 | 214.214214 | 26/3.00 | 7/2.33 | 19.1919 | 746 | 6620 | 0.00000 | 535 |
| 210/35 | 209.209209 | 34.3434 | 243.243243 | 26/3.20 | 7/2.49 | 20.2020 | 850 | 7490 | 0.00000 | 590 |
| 210/50 | 212.212212 | 50.5050 | 262.262262 | 30/3.00 | 7/3.00 | 21.2121 | 981 | 9390 | 0.00000 | 610 |
| 230/30 | 231.231231 | 30.3030 | 261.261261 | 24/3.50 | 7/2.33 | 21.2121 | 877 | 7310 | 0.00000 | 630 |
| 240/40 | 243.243243 | 40.4040 | 282.282282 | 26/3.45 | 7/2.68 | 22.2222 | 987 | 8640 | 0.00000 | 645 |
| 265/35 | 264.264264 | 34.3434 | 298.298298 | 24/3.74 | 7/2.49 | 22.2222 | 1002 | 8305 | 0.00000 | 680 |
| 300/50 | 304.304304 | 50.5050 | 354.354354 | 26/3.86 | 7/3.00 | 24.2424 | 1236 | 10700 | 0.00000 | 740 |
