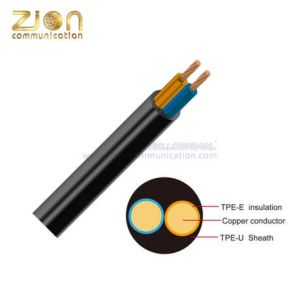

FLR13Y11Y Automotive Cable Thermoplastic Polyester Insulation

Add to Cart

FLR13Y11Y Automotive Cable
Product Description:
Conductor			Cu-ETP1 according to DIN EN13602
Insulation			Thermoplastic polyester (TPE-E)
Sheath			Thermoplastic polyurethane (TPE-U)
Standard Compliance			ISO 6722 Class C
Technical Parameters			Operating temperature:–40 °C to +125 °C
Application:
Automotive TPE-E insulated ,TPE-U sheathed low tension multi-cores cable is used for ABS systems, it has excellent abrasion resistance and better resistance to bending fatigue.

Zion's Hot Types of FLR13Y11Y Automotive cable
	Conductor				Insulation Cable		Cable
Nominal cross- section	No. and Dia. of Wires	Diameter Max.		Electrical resistance at 20°C max.	Thickness wall Nom.	Diameter of Core	Sheath Thickness	Overall Diameter Min.	Overall Diameter max.	Weight approx.
mm²	No./mm	mm		mΩ/m	mm	mm	mm	mm	mm	Kg/km
2 x 0.50	28 /0.16	1.00		37.10	0.20	1.40	0.60	3.85	4.15	22.00
2 x 0.50	28 /0.16	1.00		37.10	0.20	1.40	0.85	4.35	4.65	27.00
2 x 0.50	28 /0.16	1.00		37.10	0.35	1.70	0.80	4.80	5.20	32.00
2 x 0.60	80/0.11	1.20		24.70	0.20	1.45	0.80	4.35	4.65	28.00
2 x 0.75	42/0.16	1.20		27.10	0.30	1.80	1.30	6.00	6.40	48.00
2 x 0.75	96 /0.10	1.20		27.10	0.30	1.80	1.30	6.00	6.40	62.00
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
