AEX-BS Automotive Cable Polyvinyl Chloride Sheath

Add to Cart

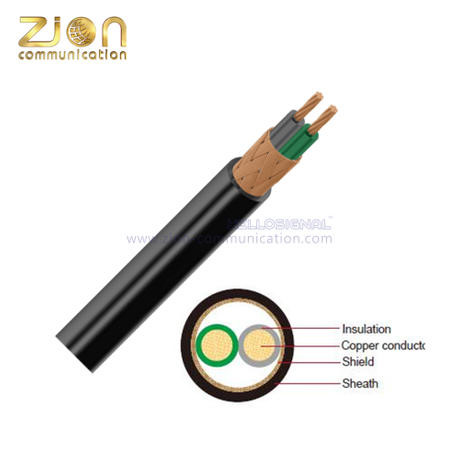

AEX-BS Automotive Cable
Product Description:
Conductor			Annealed stranded copper
Insulation			Cross-Linked Polyethylene
Shield			Tin coated annealed copper
Sheath			Polyvinyl Chloride
Standard Compliance			JASO D608; HMC ES SPEC
Technical Parameters			Operating temperature:–40°C to +120 °C
Application:
This XLPE insulated cable is used in low voltage signal circuits in automobiles. superior heat resistance with irradiated PE. Suitable for the consideration or the shielding characteristic.

Zion's Hot Types of AEX-BS Automotive cable
	Conductor				Insulation	Cable
Nominal cross- section	No. and Dia. of Wires	Diameter max.		Electrical resistance at 20°C max.	Thickness Wallnom.	Overall Diameter Min.	Overall Diameter max.	Weight approx.
mm²	No./mm	mm		mΩ/m	mm	mm	mm	Kg/km
0.5f	20/0.18	1.00		0.04	0.60	4.00	4.20	25.00
0.85f	34/0.18	1.20		0.02	0.60	7.00	7.20	62.00
1.25f	50/0.18	1.50		0.02	0.60	4.50	4.70	40.00
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
