    10 / 100 / 1000Mbps Din Rail Industrial SFP Network Switch with 2 Slots and 2 Ethernet Ports

    10/100/1000Mbps Din Rail Industrial SFP Network Switch with 2 SFP Slots and 2 Ethernet Ports


    Technical Parameter

    Product Name10/100/1000Mbps Industrial Din Rail Network Switch (2F+2TP)
    Port

    2 x 1000Mpbs SFP ports

    SM:1310nm/1550nm,20Km

    1490nm/1550nm,40~120Km

    MM:1310nm,2Km

    2x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

    Switching features

    Transmission mode: storage and forward

    System bandwidth:40Gbps (non-traffic jam)

    Network media

    10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m)

    100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

    SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

    LEDsPower, network, fiber
    Power supply

    Input voltage:DC 9-52V

    No-load power:5W

    Reverse connection: support

    Environment

    Working temperature:-40°~ 85°C

    Storage temperature:-40°~ 85°C

    Working humidity:10%~90%,non-condensing

    Storage humidity:10%~95%,non-condensing

    Industry Standards

    EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

    EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

    Traffic Control: NEMA-TS2

    Vibration:IEC 60068-2-6

    Freefall:IEC 60068-2-32

    Shock:IEC 60068-2-27

    Rail Traffic: EN 50121-4

    Safety

    CE Mark , commercial

    CE/LVD EN60950

    Mechanical information

    Shell:Corrugated metal shell

    Safety class: IP40

    Dimension: 113.8 x 93 x 34.9mm

    Mounting method: Din-rail mounting

    WarrantyReplacement within 1year; 5 years repairing

    Product Introduction

    10/100/1000Mbps Din Rail Industrial SFP Network Switch is the 10/100/1000 Mbps industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification, and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.


    Product Features

    • 2 x 10/100/1000Mbps Auto-sensing RJ45 ports
    • 2x 1000Mbps SFP fiber ports
    • 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
    • Support Auto MDI/MDIX
    • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
    • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
    • A store-and-forward switching mechanism
    • Operating environment temperature:-40 ° ~85 ° c

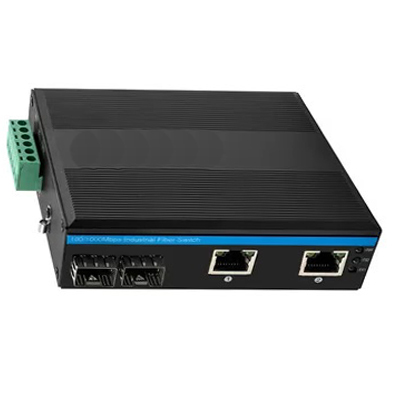

    Product picture

    Packaging & Shipping

    ● All of our package are international standard package

    ● We will deliver our products as soon as the order confirmed
