| Brand Name : | BRITEC |
| Model Number : | BRBD-4L-24 |
| Certification : | CE |
| Payment Terms : | L/C, D/A, T/T, Western Union |
| Supply Ability : | 50000 Piece/Pieces Month |
| Delivery Time : | Shipped in 15 days after payment |

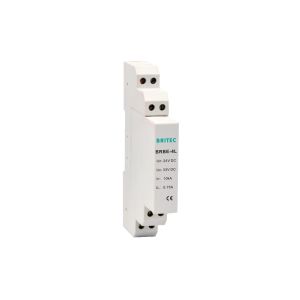

Signal Surge Protective Devices Power Line SPDs for Data Transmission
Our Product
Type 1 surge protection device.
Type 2 surge protection device.
Type 1 + Type 2 surge protection device.
Type 3 surge protection device.
Type 2 + Type 3 surge protection device.
DC (pv, solar) surge protection device.
LED surge protection device.
Data surge protection device.
Product detail:

| BRBD-4L-24 | |
| Test standards | IEC 61643-21 |
| SPD class | TYPE2 P1 |
| Nominal voltage Un | 24V |
| Max. continuous operating d.c. voltage Uc | 33V |
| Max. continuous operating a.c. voltage Uc | 23.3V |
| Nominal current at 45℃ IL | 1A |
| C2 Total nominal discharge current (8/20us) In | 20kA |
| C2 Nominal discharge current (8/20us) per line In | 10kA |
| Voltage protection level line-line for ln C2 Up | ≤55V |
| Voltage protection level line-PG for ln C2 Up | ≤600V |
| Voltage protection level line-line at 1 kV / us C3 Up | ≤45V |
| Voltage protection level line-PG at 1 kV / us C3 Up | ≤550V |
| Sereies impedance per line | 1 Ohm |
| Cut-off frequency line-PG fG | 7.8 MHz |
| Capacitance line-line C | ≤1.0nF |
| Capacitance line-PG C | ≤16pF |
| Operating temperature range Tu | -40℃…+80℃ |
| Enclosure material | polyamide PA 6.6 |
| Degree of protection (plugged-in) | IP20 |

Our Services:
Sample service: sample offered.
Fast & cost -effective shipping.
Fast lead time.
Best after-sale service.





|
