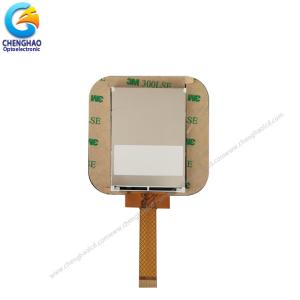

240x320 Small Tft Lcd Display 2.4 Inch Lcd Tft Touch Screen With
RoHS
1. Specification of 2.4 inch tft lcd touchscreen
| Module number | CH240QV58A-CT |
| Resolution | 240(RGB)x320 dots |
| Active Area | 36.72×48.96 mm |
| View angle | 6 o’clock |
| Pixel Arrangement | RGB-stripe |
| Surface Treatment | Plant |
| Electrical Interface | 8 bit SPI |
2. Description of 240x320 tft lcd touchscreen
CH240QV58A-CT is a Touch Screen Display Module customized by
Chenghao Company for customers. It is a color active matrix thin
film transistor (TFT) liquid crystal display (LCD) that uses
amorphous silicon TFT as a switching device. This model is composed
of a Tn TFT LCD panel, a white cover, a Capacitive Touch Panel
(CTP), a driving IC, a back-light (BL) and FPC.
The Tft lcd Panel has a 2.4 inch ( vertical screen ) diagonally
measured active display area with 240x320 dot resolution. The
ST7789 mounted on glass is the driver IC of this module, which is
interconnected with other components via FPC. By inputting the RGB
model to the ST7789, this display can display 262K/65K colors.
The Back Light (BL) has 4 parallel white LEDs. By inputting the
electrical signal of VF=3.2V/IF=80 mA, the lcd module will generate
a luminance of 280 cd/m2.
The FPC can also be customized according to customer requirements,
such as modifying back-light and FPC structure, interface
definition, etc.
RoHS Compliance & Halogen Free.
3. Drawings of 2.4 inch tft lcd touch screen
Notes:
(1) Display Type : 2.4 inch TFT+CTP
(2) Viewing Direction : 6 o’clock
(3) Polarizer Mode : Transmission / Positive
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS
