Home > Transformers >

4 current range measurement clamp on current transformer FRC-800-G2 input 10000A with integrator flexible rogowski coil

Ask Lasest Price
Brand Name :	SUCHEN
Model Number :	FRC-800-G2
Supply Ability :	10000 Piece/Pieces per Month
Price :	$312.00 - $355.00/pieces

Add to Cart

Product Details
Company Profile

4 current range measurement clamp on current transformer FRC-800-G2 input 10000A with integrator flexible rogowski coil

Product Description

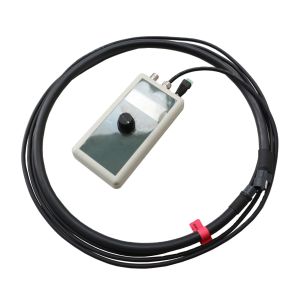

Clamp-on Flexible Rogowski coil Current Transformer is an AC current transducer for permanent installation.

They combine the benefits of a thin, flexible, clip-around Rogowski (sense) coil with a signal conditioner providing

accurate, true rms measurement, of voltage or current.

1) AC current probe utility by the Rogowski principle
2) Flexible and lightweight
3) Coil length from 20cm to 100cm
4) Suitable to measure currents from mA to 100kA
5) Easy & quick installation in uninterruptible power line
6) Simple to install in applications where space is limited
7) The size of the Rogowski coil can be specified independently of the primary current
8) Does not suffer from magnetic saturation

Model	Max. Input current	Measure Range
FRC-600-G2	5000A
		1-500A
		1-1000A
		1-2000A
		1-5000A
FRC-800-G2	10000A	1-500A

		1-2000A
		1-5000A
		1-10000A

Dimensions(mm)	FRC-210-G1	FRC-350-G1	FRC-420-G1	FRC-510-G1	FRC-600 -G2	FRC-800 -G2
A Window size((mm)±10%	60mm	103mm	125mm	155mm	180mm	245mm
B Rogowski Coil O.D.(mm)±10%	73mm	120mm	141mm	171mm	201mm	266mm
C Rogowski Coil Diameter	6.5mm	8mm	8mm	8mm	10.5mm	10.5mm
D Wire Lead Diameter	4mm	4mm	4mm	4mm	4mm	4mm
