    High Thermal Silicon Carbide Plate Shock Resistance Kiln Shelves For Ceramic Firing

    Ask Lasest Price
    Brand Name : KAMTAI
    Model Number : KTRKF10000
    Certification : ISO
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram,Paypal
    Supply Ability : 5000PCS/MONTH
    Delivery Time : 25 DAYS AFTER PAYMENT
    MOQ : 200PCS
    • Product Details
    • Company Profile

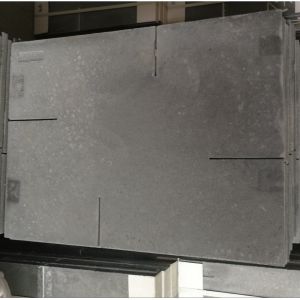

    High Thermal Silicon Carbide Plate Shock Resistance Kiln Shelves For Ceramic Firing

    High Strength Silicon Carbide Kiln Shelves



    1. Introduction

    High Strength Silicon Carbide Kiln Shelves are thin, lightweight made from an advanced Nitride-bonded Silicon Carbide composition, stronger and weigh half or less compared with a conventional 1” thick Cordierite kiln shelves. They do not sag or warp after many firings under heavy loads and suitable for temperatures up to 2600°F and a great choice for Gas, Soda and firing kilns. They are about twice the cost of Cordierite or High Alumina kiln shelves cost.

    Kiln shelves should be stored standing up on their edges. Storing them flat makes it more possible for them to break or cracks. Keep shelve dry. If they do get wet (e.g., after applying kiln wash), heat them slowly and soak for a few hours at 300° F.


    Warning: Stay away from electric kiln elements – kiln wash will corrode and reduce the elements life expectancy.


    2. Specification

    ItemTechnical Data
    Volume density(g/cm3)2.70-2.75
    Apparent porosity(%)7-8
    Strength at normal temperature(Mpa)>50
    High temperature bending strength(Mpa/1400℃)>55
    Cold crushing strength(Mpa)>90
    Refractoriness under load (℃)>1750(T2)2Kg/cm2
    Maximum service temperature (℃)1450
    Pyroconductivity (Kcal/m.h.℃)13.5-14.5
    Thermalexpansivity(×10-6/℃)4.2-4.8
    Chemical compentSiC>90%
    Fe2O3<0.3%
    Al2O3>99%(surface coating)

    MAIN SIZE OF SIC KILN SHELF
    250*250*T295*295*T310*310*T320*320*T340*340*T300*200*T
    380*300*T340*200*T380*340*T400*150*T400*190*T400*195*T
    400*200*T400*230*T400*270*T400*320*T400*400*T420*420*T
    450*450*T400*215*T320*240*T550*400*T500*450*T500*370*T
    600*500*T530*330*T600*400*T600*550*T620*560*T550*370*T
    700*500*T550*500*T500*480*T600*400*T420*400*T450*400*T
    Thickness can be 10-30mm

    Packing details:

    silicon carbide plate is packaged with fumigated wooden pallet, using paper or non-woven fabrics between layers separated,plastic shrink film protected outside.finally using straps. Or as your requirements.
