Small Hand Foot Shear Guillotine Sheet Metal Cutter Bender

    Buy cheap Small Hand Foot Shear Guillotine Sheet Metal Cutter Bender from wholesalers

    Buy cheap Small Hand Foot Shear Guillotine Sheet Metal Cutter Bender from wholesalers
    • Buy cheap Small Hand Foot Shear Guillotine Sheet Metal Cutter Bender from wholesalers

    Small Hand Foot Shear Guillotine Sheet Metal Cutter Bender

    Ask Lasest Price
    Brand Name : QH11D
    Certification : CE
    Price : $11,500.00/Sets >=1 Sets
    Supply Ability : 100 Set/Sets per Year
    • Product Details
    • Company Profile

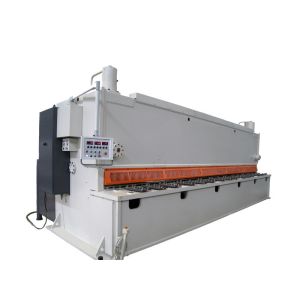

    Small Hand Foot Shear Guillotine Sheet Metal Cutter Bender

    CNC flat plate sheet metal hydraulic guillotine shearing machineSemi-automatic Shearng Machine

    Overload overflow protection is outfitted to hydraulic system, which can assure no leakage

    The distance of the backgauge is adjusted by the motor.
    Digital display device for distance of back gauge and shearing times available.
    Adopt handwheel to rapidly and accurately adjust the blade clearance
    Adopt integrated hydraulic system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups
    and it is installed at the top of the oil box.
    Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
    Humanistic concern security design in all details and also the scientific details through KINGWELL standard.


    Specifications
    Max. Cutting Width (mm)
    3000
    Max. Cutting Thickness (mm)
    3.2 mm
    Automatic Level
    Semi-automatic
    Shearing Angle
    1.5 degree
    Blade Length (mm)
    3100 mm
    Backgauge Travel (mm)
    20 - 600 mm
    Throat Depth (mm)
    50 mm
    Condition
    New
    Brand Name
    QH11D
    Power (kW)
    11 kW
    Weight (KG)
    3450 KG
    Place of Origin
    China
    Voltage
    380-400V
    Dimension(L*W*H)
    3750*2100*1400MM
    Certification
    CE
    Warranty
    1 Year
    Core Components
    Motor, Other, BLADE
    3MM
    3050MM
