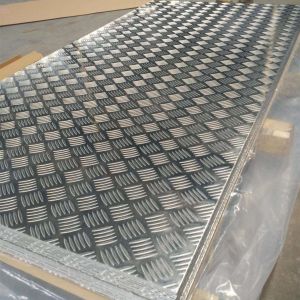

Diamond Aluminum Plate Checkered Patterned Plate Embossed
Perforated Aluminum Sheet
What Types of Aluminium Checker Plates Can We Supply?
1050/1060/1100 Aluminium Checker Plate: It is mainly used for flooring. The 1000 series aluminium tread
plates are the most economic among the aluminium chequered plates.
3003 Aluminium Checker Plate: This type of checker plate has higher strength than 1000 series
anti-skip checker plates. Meanwhile, it is antirust.
5052/5083/5754 Aluminium 5 Bar plates: The 5000 series aluminium plates has better strength, rust and
corrosion protection than 3000 series aluminium plates. It is
widely used for boat.
| Checkered Aluminum Plate |
| Product | Checkered Aluminum Plate |
| Pattern design | Big Five Bar,Small Five Bar,Diamond, Lentil Patterm Etc. |
| Quality standard | Mill Finish, No Stains, Without Rough Selvedge,Cold Rolled, Hot
Rolled, Totally free from defects like white rust,adge damage, camber,
dents, holes, break lines, scratches. |
| Production Process | Cold Rolled, Hot Rolled |
| Alloy series | 1050,1060,1070,1100,3003,3003,5005,5052 |
| Temper | O,H14,H16,H18,H22,H24,H26,H32,H34,H112 T4,T651 Etc. |
| Thickness | 0.7mm - 6.0mm |
| Width | 500mm - 1600mm |
| Package | Export wooden pallets, Craft paper, Anti-Blushing Agent. |
| Delivery Time | Future goods: 20-30 Work days, Ready Stock:7-10 days. |
| Application | Refrigerator, air conditioner, car, platform, packing tube, screen
frame, various hanging beam, table leg, handle, cable slot and
cover, chair, etc. |
| Kind Attention | Specification can be customized as the customer's requirements. |
Properties of Aluminum tread plates
Aluminum tread plates ccording to the different classification of
aluminum sheet alloy
1) the general tread aluminum alloy plate: 1060 aluminum plate for the plate from the processing of aluminum
alloy pattern plate, able to adapt to the normal environment, low
prices. Usually cold storage, flooring, packaging and more use of
this pattern aluminum sheet.
2)Al-Mn alloy tread plate: 3003 as the main raw material processing, the aluminum plate,
also known as rust-proof aluminum, the strength is slightly higher
than the ordinary aluminum alloy pattern plate, with a certain
anti-rust properties, but the hardness and corrosion resistance
Less than 5,000 series of pattern plate, so the product is not
strictly used in the anti-rust, such as truck models, cold storage
floor.
3)aluminum-magnesium alloy tread plate: 5052 or 5083, such as 5000 series of aluminum as raw material
processing, with good corrosion resistance, hardness, anti-rust
performance. Usually used in special places, such as ships, cars
lights, humid environment, the high hardness of aluminum, a certain
load-bearing capacity.
In accordance with the different patterns of aluminum plate
classification: pattern plate has a bar, two bars, three bars and
five bars.
FAQ
1. How long will it take to execute my order?
Our normal produce time is 7-15 working days.but we have many
models in stock
2. How much will the shipping cost be?
This will depend on the size and weight of your order and the
method of shipping.
3. Do you provide samples?
Yes, we can provide samples . We can send the samples by TNT,DHL,
FEDEX, EMS, UPS or to your warehouse
4. Do you have products in stock?
There are 600 tons stock for various size .pls kindly inform us
what model you need , we will send stock details to you .
5. Can I visit you?
Sure, Pls let us know if you have a plan to visit our company, we
will arrange it for you
