1mx1mx1m Welded Wire Mesh Galvanized Steel Decorative Garden Cage
Fence Gabion Stone Baskets Box
Gabion is easy to build and can be a great way to quickly build a
wall or structure in case of a severe weather emergency.
Surface Treatment Power Coated
a. Hot-dipped galvanized , Mass of Zinc Coating , Up to 300g/m2
b. PVC Coated Mattresses and gabion baskets are also available with
a 0.5mm nominal thickness P.V.C. coating to enhance the
resistance of the baskets to corrosion of the wire mesh. This
provides a overall increase in diameter of 1mm to all wires used in
the manufacturing process.
c. Galfan, 95% zinc, 5% aluminum
Specification (standard)
Gabion Materail: Low-carbon Iron Wire

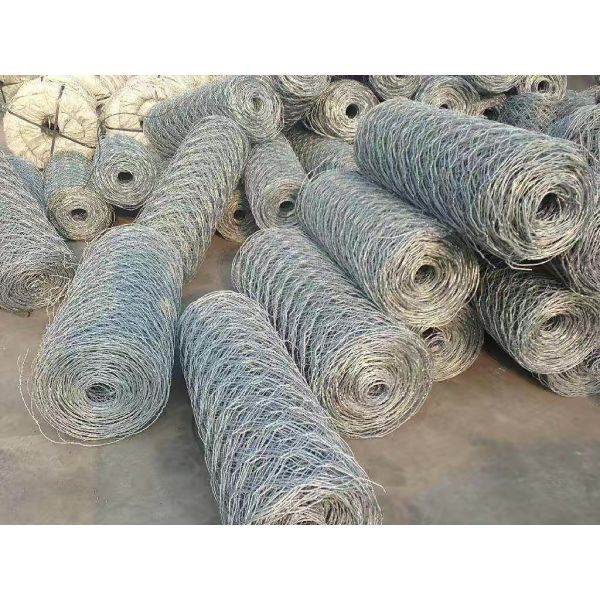

Gabion Mesh Shape: Hexagonal
Gabion Mesh Size:
60x80,70x90,80x100,90x110,100x120,110x130,120x150mm
Gabion Wire Diameter
a. Body Wire: 2.0-4mm
b. Selvedge Wire: 2.0mm-4.5mm
c. Tie Wire: 2.2mm(or C rings)

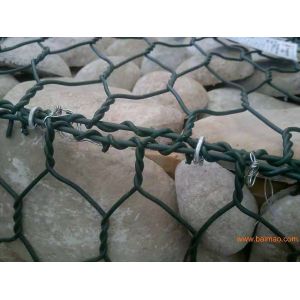

Gabion refers to PVC coating on zinc coating wire fabric containers
that comes in variable sizes with rocks filling to form a permanent
structure. And the Green Gabion Mattress, also known as Gabion
Mattress System by Fibromat makes a great Earth Retention System
caters for slopes erosion control, toe and river bank protection,
maximizing permeability on the structure while providing
reinforcement and grass establishment.
Gabion Mattresses serves as a retaining wall, providing various
prevention and protection works such as landslide prevention,
erosion and scour protection as well as various type of hydraulic
and coastal protection for river, sea and channel protection. This
Gabion Mattress System is made up of a specially designed composite
in order to maximize its performance through three phases of
vegetative process from unvegetated to vegetation establishment up
to vegetation maturation.
Gabion Specification :
Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC
coated wire
Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.
Gabion sizes:
1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,
5x1x0.3m,6x2x0.3m etc.,customized is available.
Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized
Gabion application: can be widely used in flood
controling,retaining wall,river bank protection,slope protection
etc.
| Gabion box common specification |
Gabion box (mesh size): 80*100mm 100*120mm | Mesh wire Dia. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Edge wire Dia. | 3.4mm | zinc coating:60g,245g, ≥270g/m2 |
| Tie wire Dia. | 2.2mm | zinc coating:60g,≥220g/m2 |
Gabion mattress(mesh size): 60*80mm | Mesh wire Dia. | 2.2mm | zinc coating:60g, ≥220g/m2 |
| Edge wire Dia. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Tie wire Dia. | 2.2mm | zinc coating:60g, ≥220g/m2 |
special sizes Gabion are available
| Mesh wire Dia. | 2.0~4.0mm | superior quality,competitive price and considerate service |
| Edge wire Dia. | 2.7~4.0mm |
| Tie wire Dia. | 2.0~2.2mm |
Mesh size | (PVC wire)Inner/outside | Hot-dip galvanized | Galfan |
60*80 | 2.0mm/3.0mm-2.8mm/3.8mm | 2.2mm-3.8mm | 2.2mm-3.8mm |
80*100 | 2.2mm/3.2mm-3.0mm/4.0mm | 3.2mm-4.0mm | 3.2mm-4.0mm |
100*120 | 2.4mm/3.4mm-3.2mm/4.2mm | 3.4mm-4.2mm | 3.4mm-4.2mm |
120*150 | 2.7mm/3.7mm-3.5mm/4.5mm | 3.7mm-4.5mm | 3.7mm-4.5mm |
" Quality is our culture!"
When you place an order, our company has professional testing
personnel. From the start of production to the completion of the
order, they will always check the product quality to ensure product
quality.
