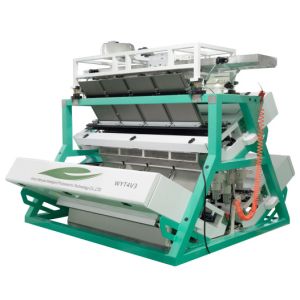

WENYAO Tea Color Sorting Machine High Capcity LED CCD Made in China
Color Sorter Machine Working Flow:
1. Raw Material are put into the machine from its feeding hopper on
the top.
2. Vibrated by vibration device and sliding along material chute
into the zone of observation in sorting chamber through sensor and
background plate .
3. Under the effect of light source, CCD sensor receives compound
light from materials being sorted.
4. According to the light intensity and color changes, make the
system produce output signal and drive solenoid valve to work
,ejecting the discolor grain to defect chamber and good materials
continue to fall into the finished goods chamber.
Main Features:
►Automatic computing and intelligent identification with high speed
camera.
►Intelligent dust cleaning system,It means you can set cleaning
time and period according to your need.
►Low temperature LED light source system,Cooling system to make the
LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the
internet,You can use mobile phone or computer to operate color
sorter.
►Easy to use touch screen in English,Spanish,German,Russian and so
on more than 20 languages.
►Self design high frequency ejectors,It means high speed and
accurate sorting performance.
►5400Pixel CCD image acquisition system with high speed chip.
Other Applications
Cereals:rice,millet,parboil rice,black rice,red rice,brown
rice,thai rice,glutinous rice.
Grains:peanut, corn,sesame,oat.
Beans:red beens,kidney beans,coffee bean,black beans,mung beans.
Nuts:walnut kernel,apricot kernel,sunflower seeds,almond,watermelon
seed,macadamia nut.
Industries:plastic,electronic component,industrial salt,quartz sand
Technical Parameters:
| MODEL | WYCS6-384 |
| Chutes/Channels | 6/384 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 3.1kw |
| |
Some other Materials of color sorting:

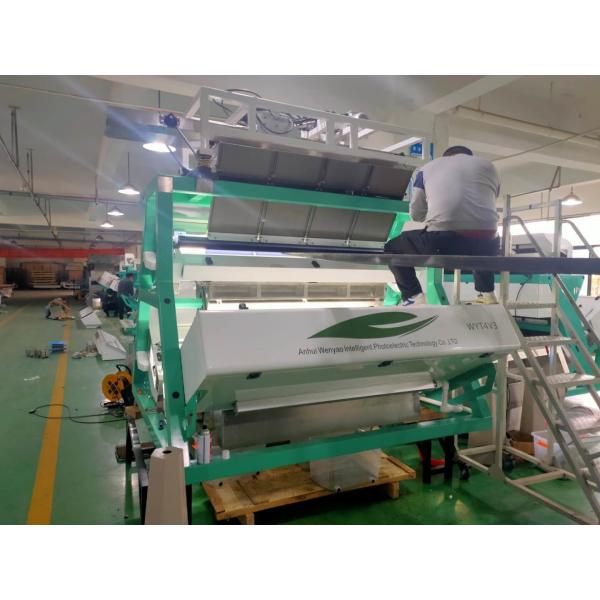

Customer's Site :
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our
engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our
customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes
color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.
