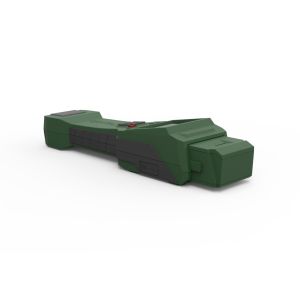

Explosive Detector SPECIFICATIONS
STAR ES I
Sampling & Analysis :
Sample Introduction Direct vapor for bottled liquids or sampling
swipes for surfaces
Sample Phase Vapor and trace particulate
Function: Threats Detects military, conventional, homemade, and
liquid explosives
Sampling & Analysis Analysis ≤8 seconds with real-time detection
capability
Results count 300 test results
Warm up ≤2min(particulate sampling),≤10S(direct vapor)
System Interface :
Display & Alerts Visible, audible, sunlight-readable color display
Language: English, translation available worldwide
Communication USB
Data Storage ≥50 000 records record download and Windows
calibration
Consumables sensors 8 pcs batteries: 2 pcs test papers 500 pcs
Display resolution: 320*240dpi
PCB board: The first generation circuit board
Power : Input Voltage 100-240 VAC (wall adapter supplied)
Battery Specs: Two rechargeable Li-ion batteries (swappable and up
to 10-hr battery life); adapter
Startup Time: <2 minutes from cold; <10 seconds from sleep
Environmental : Operating Temperature -20 to 60 °C
Operating Humidity: 0% to 95%
Dimensions : 326mm×88mm×65mm(particulate
sampling),296mm×88mm×65mm(direct vapor)
Weight 1.2 kg (batteries, particulate sampling)
Enclosure & Protection EVA compartmentalization inside a military,
rust resistant case
