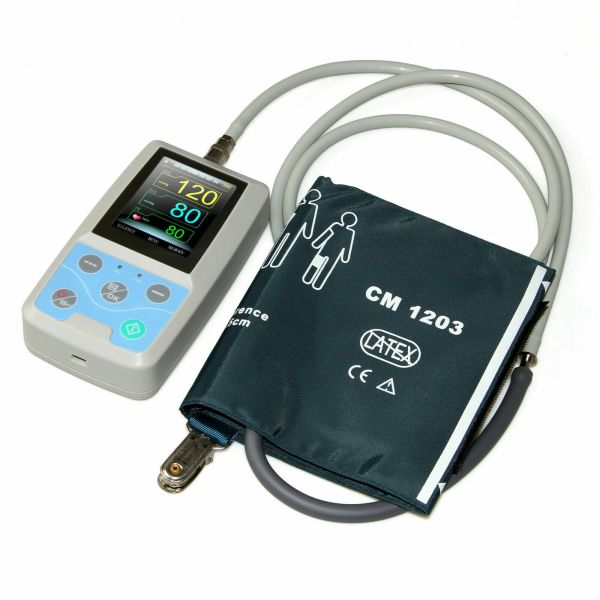

Introduction PM50 is a multi-functional patient monitor that can
monitor BP and SpO2 at the same time. Realizing long time
monitoring of dynamic blood pressure, the device is widely
applicable to hospital wards, community clinics and other medical
institutions. Functions Features: 1)Compact and portable, easy to
use. 2)With Integrative SpO2 Probe. 3)Double working
modes,monitoring function and 24 hours ambulatory NIBP measurement
function can be flexibly set. 4)Long time monitoring BP and SpO2,
displaying value of BP, SpO2 and PR. 5)NIBP and SpO2 data Record
for large capacity. 6)With friendly user interface, the user can
see list menu and review measurement results. 7)The device can
display low power information, alarm information, error information
and time information richly. 8)Parameter alarms function is
optional. 9)Patient information can be flexibly set. 10)Case
management function.PC software can achieve data review, analysis
measurement results, seeing trend, printing reports and other
functions. 11)Data can be transmitted between device and computer,
such as upload patient information, download measurement data.
12)English and Chinese menu. Function of master device software:
1)Set patient information through PC software. 2)Up to 1000
patients cases can be edited and supervised. 3)The time segment of
dealing with the patient’s NIBP data is 48 hours. 4)Connect the
device by USB interface. 5)Can upload patient information data
collection project and download collection data. 6)Can display
scoop-shape trend graph,filling-type trend graph, histogram, pie
chart, correlation line graph. 7)Can edit every piece of data, and
add annotation to it. 8)Can edit basic information,doctor's advice
information, NIBP and SpO2 status instruction, current
medicine-taken information, etc. 9)Support print preview,print the
report. Performance NIBP: Measurement Method: Oscillometry
Measurement Mode: The upper arm measure Measuring range: SYS
40mmHg～270mmHg MAP 20mmHg～235mmHg DIA 10mmHg～215mmHg Automatic
Measurement Interval: 5.10.15.20.30.45.60.90.120 minutes
Resolution: 1mmHg Accuracy: ±3mmHg Increasing pressure mode: force
pump increases pressure automatically Reducing pressure mode:
self-motion ladder reducing pressure mode Alarm parameter: SYS /
DIA SpO2: Measuring range: 0%～100% Resolution:1% Accuracy: 70-100%,
±2%, below 70% unspecified Error in Weak Filling Condition:SpO2 and
pulse rate can be shown correctly when pulse-filling ratio is 0.4%.
SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select
larger). Resistance to surrounding light:The deviation between the
value measured in the condition of man-made light or indoor natural
light and that of darkroom is less than ±1%. Pulse Rate: Measuring
range:30bpm~250bpm Resolution:1bpm Accuracy: ±2 bpm or ±2% (select
larger) Display: 2.4" TFT colour LCD Safety: Power: DC 3V(Two
"AA",1.5V Alkali Battery) Product safety type:Type BF application

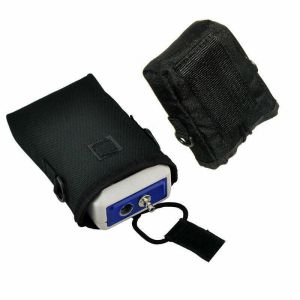

part (Internally powered,defibrillator protected) Accessories cuff
for adult Integrative SpO2 Probe USB data line Disk (PC software)
Pouch User manual Physical characteristic Dimension: 128*69*36 mm
(No including Packing) Weight: <350g (Including Batteries)
Working environment: Temperature:5 ˚C～40 ˚C Relative humidity:≤80%
Altitude:-500 to 4,600m (-1,600 to 15,000ft) Specific EMC, climate,
mechanical environment: Do not use a mobile phone in the vicinity
of the patient monitor for the strong radiation field produced by
mobile phone would interfere with the normal function of the
patient monitor use. Storage environment: Temperature: -20˚C ~ 60
˚C Relative humidity: ≤95 % Altitude:-500 to 13,100m (-1,600 to
43,000ft) Specific EMC, climate, mechanical environment: The
patient monitor after packaged should be stored in a
well-ventilated room with no corrosive gas. Strong shock, vibration
and snow and rain should be avoided during transportation.
