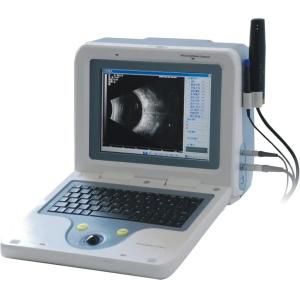

MD-320W Portable Ultrasound Biomicroscope
Minimize but no compromise! 50MHz high frequency ultrasonic
scanning for detection of anterior segment. Your portable and
reliable friend.
Features
l Probe Frequency: 50MHz
l Two View Ports: 6.7 x 5.3 mm2 & 13.5 x 10.6 mm2 for detailed and panoramic scanning respectively
l Probe Protection: hibernation after 5 minutes continuous scanning
l Alarm and Auto-Freezing when probe is blocked or approaches the
cornea
l Easy operation, functions are designed according to the doctors’
customs and the scanning process
l Real-time video capture, single frame and dynamic cineloop capture
l Printable Report with Graph and Text
l Archive and Search for Patient Record
l Portable Design
l Massive Storage Capacity
Specifications:
l Probe Frequency: 50MHz
l Resolution: axial≤0.05mm, lateral≤ 0.1mm
l View Ports: 6.7 mm x5.3 mm, 13.5mm x10.6 mm
l Scan Angle: 13.5°/27°
l Variable Delay Depth: 3 ~ 18 mm, adjustable by step of 1 mm
l Dynamic Replay for 4.8 sec, 48 images displayed continuously or
separately
l Image Processing: Brightness, Contrast, Annotation, etc.
l Measurement: Distance, Angle, Area, etc.
l Printable Report with: Patient’s information, Clinical test,
Description of images
l Total Gain: 105dB
l Gray Scale: 256 levels
l Image Formats: JPG, BMP
