Ultrasonic wound debrider system painless surgical care Ulrtasound
cleaner healing ultrasonic wound debridement
Effective and gentle wound cleansing
Debridement plays an important role in the treatment of complex
wounds. As part of wound management, it prepares the wound bed in
order to promote a rapid and complete healing.
Ultrasonic-Assisted Wound Debridement (UAW) is a very effective and
gentle method for the cleansing of chronic and acute wounds with a
worldwide unique level of evidence. Even hard-to-reach areas can be
debridated without an extensive surgical scenario. Wound treatment
can be carried out on an outpatient basis and with local anesthesia
by doctors or specialised nursing staff. In contrast to traditional
sharp debridement procedures, the UAW disrupts adhering biofilms 1
and enables the effective removal of devitalized tissue in close
proximity to healthy tissue. This results in a clean, viable wound
bed, as well as a more rapid granulation. Antimicrobial therapies
and the body's own defence reactions can work better and the
formation of new bacterial biofilms is impeeded.

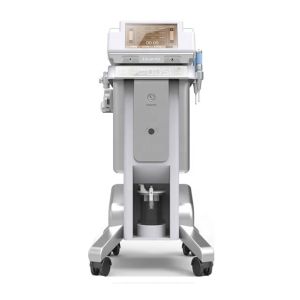

The debridement machine is a medical device for debridement of
complex windows developed by using the cavitation effect of
ultrasound and the mechanical effect of high frequency vibration.
Compared with traditional debridement methods, ultrasonic
debridement tips can provide debridement efficiency, reduce damage
to normal tissues during the debridement process, reduce patient
pain, and integrate portable and mobile. Multifunctional
debridement machine with ultrasonic cleaning, pulsation flushing
and negative pressure suction, which can destroy the biofilm of
bacteria and has a bactericidal effect; it can improve the activity
of antibiotics, promote the decomposition of fibrin, improve blood
circulation and relax blood vessels; also It can remove the
necrotic tissue in the wound, and at the same time has a good role
in protecting the new granulation tissue. It is currently a
relatively advanced shell debridement technology.
Scope of application:
1. Treatment of various traumas, surgical wounds, infected
wounds/wounds: such as various freshly contaminated soft tissue
injuries, scalds, superficial infection wounds/wounds, purulent
wounds/wounds, sinus, fistula, etc.
2. Hard-to-heal wounds: such as diabetic wounds, bedsores,
neurotrophic ulcers, traumatic ulcers, etc.
3. Soft tissue trauma, open fractures and other wounds
4. First aid trauma debridement
Applicable places:
Traumatology, orthopedics, burns, endocrinology, emergency surgery,
general surgery, anorectal surgery, hand and foot surgery,vascular
surgery, dermatology, rehabilitation physiotherapy, operating room,
dressing room, etc.
Product advantages:
1. Safe and painless debridement: The equipment has an independent
medical liquid pipeline, which can be quickly replaced to
achieve the continuous use of the host. Colleagues avoid the
occurrence of cross-infection. During the debridement process,
the patient's pain is greatly reduced, the nerves and blood vessels
around the wound will not be damaged, and normal tissues
and newly-born granulation tissues will not be damaged.
2. Efficient debridement: The debridement fluid is radiated into
mist due to the action of ultrasound, which improves the
utilization rate of the debridement fluid, increases the
debridement area, and shortens the debridement time
3. Thorough clearance: During debridement, according to the actual
situation of the wound, change the appropriate ultrasonic
treatment handle for different wounds, and adjust the position of
the debridement head and the wound appropriately to deal
with parts that cannot be reached by ordinary debridement
instruments. Achieve thorough debridement
4. Promote healing: improve the wound environment, promote the
effect of drug treatment, activate fiber cells, promote the
synthesis of fibrin, and enhance the wound healing ability
5. High-efficiency bacteria rate: use ultrasound to remove and
destroy bacteria, fungi and diseases that adhere to the wound,
and the bacteria removal rate is as high as 96%
6. Intelligent and humanized design: Independently adjustable
negative pressure drainage and pulse system, detachable main unit,
easy to move or use independently. Touch screen interface control,
friendly human-computer interaction screen, simple
operation. The handle is light and small, and the operation is
convenient and flexible, which greatly reduces the workload of
medical staff
model | 02 | 04 |
Function configuration | Ultrasonic debridement, pulsating irrigation | Ultrasound debridement |
Total power | ≤300VA |
Input voltage | AC100-240V,50/60HZ |
Ultrasonic frequency | 20KHZ-40KHZ |
Ultrasonic power | ≤100W |
noise | ≤60dB |
Pulsating flushing volume | ≤1200mL/min | 一 |
Negative pressure suction | 一 | 一 |
