System Overview
Standard Features:
Based on the advanced imaging technology and ergonomic
design,MSLVU41 plus is equipped with superior image quality,
comprehensive functions, high cost effectiveness and mobility,
which make it applicable to different body scans and clinic
departments, for example emergency, hospitals, clinics, out calls,
etc. With this machine, we are capable to provide very
comprehensive imaging system solutions.
Application scenarios:
* Applicable to different body scans, for example, Abdomen,
Obstetrics, Gynecology, Cardiology, Small Parts, Urology, Kidney,
MSK(Musculoskeletal); Carotid; Orthopedic; Vascular
* and varied user Ultrasonography, emergency, operating room, ICU,
ward and out‐
Ultrasound platform: Based on linux, stable performance, security data
Keyboard: All backlit keyboard,realizes easy work even under weak light

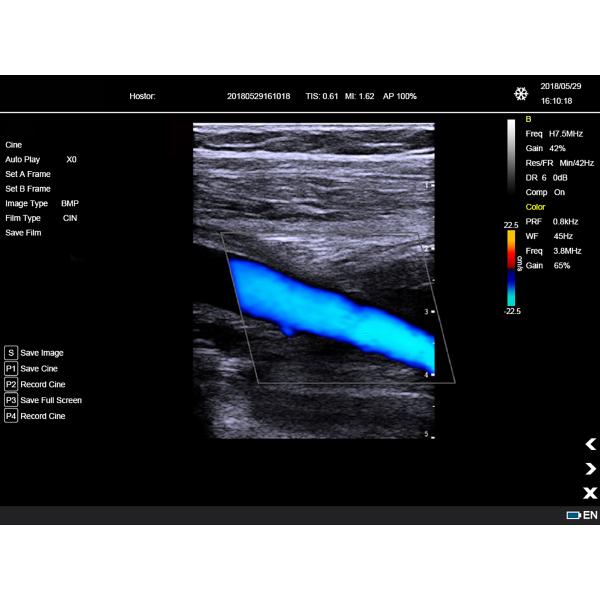

Imaging Modes: B, B/B, B/M, M, 4B, C, PDI, PW
Gray scale levels: 256
Transducer Type: Convex Array,Linear Array,Endocavity Array
Transducer frequency: 2‐15 Mhz
Transducer connector: 2 active transducer connectors support quick switch between
different probe needs
Scanning depth: up to 351mm
Language: Software: English, Chinese, Spanish and more(ODM support!)
Keyboard Input: English, Chinese, and more User Manual: English, Chinese
Physical Spec
System Dimension: Height: 402mm Width: 385mm Depth: 98mm
Weight: Around 8.5 kg (Include Battery)
Physical channels: 64
Transducer element: 128
Monitor:
* 15' high resolution LED monitor with tilting to view it freely
and comfortably
* Resolution:1024×768
* Brightness Adjustable
* Max Opening Angle:45°
Power: System operates via AC power & battery
AC Adapter:
* Model:MANGO‐BMV‐15AD‐C5
* Voltage:100‐240VAC
* Frequency:50/60 Hz
* Currency:5A
* Output:15V
Battery: (optional)
* Model: LY606090
* Lithium‐Ion,1V , 8000mAH
* Chargeto Full: 6 hours
* Max Duration: 120 minutes real time scan *
Operating Environment:
* Temperature: 0‐40 °C
* Humidity:30%‐85% (non‐condensing)
* Pressure: 700hPa‐1060hPa
Storage and Transport:
* Temperature: ‐20‐55 °C
* Humidity:30%‐95%(non‐condensing)
* Pressure: 700hPa‐1060hPa
