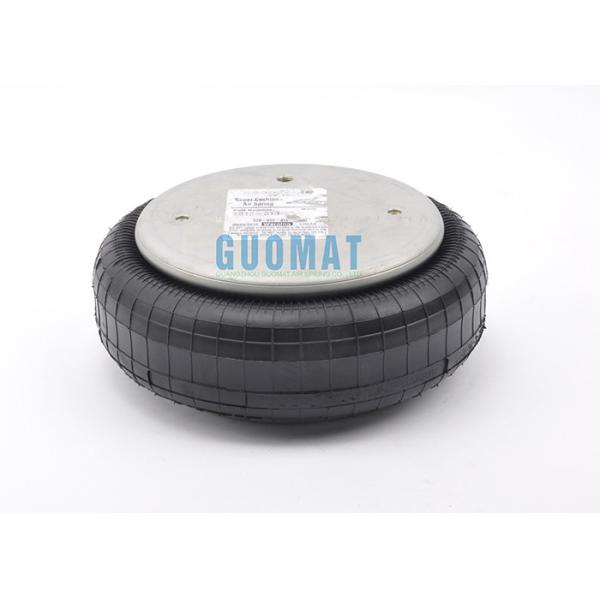

1B12-313 Goodyear Air Spring Single Convoluted Air Suspension Airbag Contitech 64596

Goodyear 1B12-313 Single Convoluted Air Suspension Airbag Contitech 64596 Air Spring

Product Introduction

Item Name:Goodyear Air Spring

Part Number:7008

Goodyear Number:1B12-313

Flexmember:578-91-3-301

Manufacturer Numbers

Contitech Number:64596,6-4-5-9-6

:FS330-11474,FS330 11474

Firestone Number:W013587008,W01-135-87008,

Goodyear 1B12-313 Air Spring Technical Data

Top Cover Plate Diameter:9.00 inches(228.6mm)

Bottom Cover Plate Diameter :9.00 inches(228.6mm)

Gas Hole/Air Inlet:250-18 NPTF (DRYSEAL)

Top Bolt Center Distance:6.20 inches(157.48mm)

Top Bolt And Air Hole Center Distance:2.88 inches(73.15mm)

Bottom Bolt Center Distance:6.20 inches(157.48mm)

The Working Stroke:MAX 7.20 inches to MIN 2.30 inches (MAX 182.88mm to MIN 58.42mm)

Maximum Height:7.20 inches(182.88mm)

Minimum Height:2.30 inches(58.42mm)

Compressed Height:4.9 inches (124.46mm)

Temperature Range(MAX) : 150℉

Temperature Range(MIN) : -40 ℉

Bellow Type:Single Convoluted

Bellows # :578-91-3-301

Convoluted:Single

Detailed Drawings Are Presented

Side View With Extended And Compressed Height	Upper Mounting View	Lower Mounting View

About Goodyear

American Goodyear (GOODYEAR), the world's first inventor of the rubber vulcanization system, is widely known in China as an automobile tire manufacturer, and developed the world's first industrial steel-core rubber conveyor belt. Goodyear is keen to develop new products in order to maintain a leading position in product quality and performance. Its main purpose is to solve problems and build word of mouth, and then achieve self-marketing products. After more than 100 years of development, Goodyear is internationally renowned for the excellent quality and performance of its products. Its production plants are located all over the world, and its product line has basically covered all the application fields of global industrial rubber products.

Air Springs For Trucks, Trailers, And Buses
Air springs for trucks, trailers buses, and cab & seat springs protect cargo, provide constant-level hauling, and deliver long, trouble-free service. Air springs give your trucks, trailers and buses a new high in productivity and long life. They offer a quiet, cushioned ride. Truck, trailer and bus bodies last longer than with steel springs because there is less vibration. The driver rides in greater comfort, becomes less fatigued and stays more alert. Plus cargo has better protection from shock and vibration. Whenever you want to add an axle, air springs fit right in. air springs, when used with leveling valves, also maintain consistent trim regardless of the load. That means clearance heights remain constant,and that trailer floors are flush with loading dock floors for ease of loading and unloading. For driver comfort, load cushioning, and long life for your trucks, trailers, bus, and cab and seat springs specify Goodyear Engineered Products air springs.

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
