Net Type Marine Inflatable Ship To Ship Yokohama Rubber Fenders
Product Introduction
The Yokohama rubber fender is used as a buffer medium to absorb the
impact energy of the ship, so that the ship has more flexibility
and flexibility when docking, so as to prevent The impact of
collisions and collisions.
Advantage of Shunhang Yokohama Rubber Fender
1. Shunhang Yokohama rubber fenders are designed, manufactured
according to ISO17357: 2014
2. Technology : Overall winding , Anti high pressure, Explosion
proof
Our Yokohama rubber fenders can bear the pressure 1.5 times than
the ordinary technology overlap joint technology.
3. Raw material of our Yokohama rubber fender : Rubber dipped Nylon
cord fabric, 1260D9091(1*2)and natural rubber, .All the rubber we
use is natural rubber , not any reclaimed rubber .
According to our customers’ feedback, we have been improving the
performance of our rubber , the aging of rubber has been greatly
improved now. Our rubber has been tested at -40℃, the tensile
strength at normal temperature is 18.4MPa.After -40℃, 120 hours
testing , the tensile strength is 15.9MPa , there is no obvious
change in appearance.
Our Yokohama rubber fenders are also used in Canada ,Russia etc.
After six months, customers’ feedback is our Yokohama fenders are
still perform well, there’s no obvious change on the surface.
4. The outer chain and tyre net .
Chain - we have hot-dip galvanized chain and stainless steel chain
according to customer’s request
Tyre- we have truck tyre and aircraft tyre according to customer’s
request.
All the chain and tyre nets fitted with appropriate shackles ,
swivel and rubber sleeve etc.
5. Designed of our Yokohama rubber fender is 6 to 10 years
6. Our warranty period is 24 monthes.
Characteristic
● External wear resistance ● Bearing pressure
● Ageing resistance ● Long service life
● Good air tightness ● Easy storage
● Non deformation ● Simple installation
Specificaton of Yokohama Rubber Fender
| Size | Initial Internal Pressure 50kPa | Initial Internal Pressure 50kPa |
Diameter/ Meter | Length /Meter | Energy Absorption /KJ | Reaction Force /KN | Energy Absorption /KJ | Reaction Force /KN |
| 0.5 | 1 | 6 | 64 | 8 | 85 |
| 0.7 | 1.5 | 17 | 137 | 24 | 180 |
| 1.0 | 1.5 | 32 | 182 | 45 | 239 |
| 1.0 | 2.0 | 45 | 257 | 63 | 338 |
| 1.2 | 2.0 | 63 | 297 | 88 | 390 |
| 1.5 | 3.0 | 153 | 579 | 214 | 761 |
| 1.7 | 3.0 | 191 | 639 | 267 | 840 |
| 2.0 | 3.5 | 308 | 875 | 430 | 1150 |
| 2.5 | 4.0 | 663 | 1381 | 925 | 1815 |
| 2.5 | 5.5 | 943 | 2019 | 1317 | 2653 |
| 3.0 | 5.0 | 1050 | 2000 | 1571 | 2709 |
| 3.0 | 6.0 | 1312 | 2488 | 1888 | 3292 |
| 3.3 | 4.5 | 1175 | 1884 | 1640 | 2476 |
| 3.3 | 6.0 | 1675 | 2783 | 2338 | 3652 |
| 3.3 | 6.5 | 1814 | 3015 | 2532 | 3961 |
Outer and Inner Rubber Material Requirements of Yokohama Rubber
Fenders
Test item |
Test method | Required value |
| Outer rubber | Inner rubber |
| 1. Before aging | – | – | – |
| 1.1 Tensile strength | ISO 37:2011 | 18 MPa or more | 10 MPa or more |
| 1.2 Elongation | ISO 37:2011 | 400 % or more | 400 % or more |
| 1.3 Hardness | ISO 7619-1:2010 | 60 ± 10 (Durometer hardness Type A) | 50 ± 10 (Durometer hardness Type A) |
2. After aging |
ISO 188:2011 | Air oven aging, 70°C ± 1°C, 96 h | Air oven aging, 70°C ± 1°C, 96 h |
| 2.1 Tensile strength | ISO 37:2011 | Not less than 80 % of the original property | Not less than 80 % of the origi- nal property |
| 2.2 Elongation | ISO 37:2011 | Not less than 80 % of the original property | Not less than 80 % of the origi- nal property |
| 2.3 Hardness | ISO 7619-1:2010 | Not to exceed the original prop- erty by more than 8 | Not to exceed the original prop- erty by more than 8 |
| 3. Tear | ISO 34-1:2010 | 400 N/cm or more | No requirement |
| 4. Compression set | ISO 815-1:2008 | 30 %(70 ± 1 °C, 22hours) or less | No requirement |
5. Static ozone aging test |
ISO 1431-1:2012 | No cracks after elongation by 20 % and exposure to 50 pphma at 40
°C for 96 h |
No requirement |
NOTE If the colour of the outer cover is not black, the material
requirements will differ from those in this table. a Parts of ozone per hundred million of air by volume. |

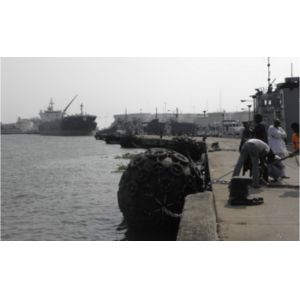

Installation and Application of Yokohama Rubber Fenders
FAQ:
Q1: What's your MOQ?
Answer: The MOQ of our Yokohama rubber fender is 1pc.
Q2: What's the lifespan of your Yokohama rubber fenders?
Answer: Designed lifespan of our Yokohama rubber fenders is 6 to 10 years
Q3: What's your warranty period?
Answer: Our warranty period is 2 years. we will responsible for the
repairment or replace the new ones for you if it proved to be our
quality problem.
Q4: Can you recommend the suitable Yokohama rubber fenders for me?
Answer: Pls tell us your ship information, as experienced
manufacturer, we will recommend suitable size and quantity for you.
Q5: What kind certificate you can provide.
Answer: ISO9001 ABS, CCS, SGS, BV, etc.certificate is available
