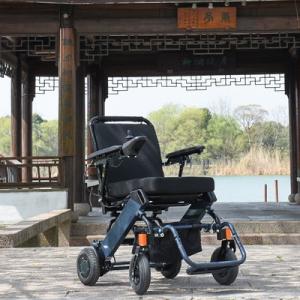

Lithium Battery Alluminum Motorized Power Wheelchair Electric for
Disabled
Model:F 308
Description
PF Wheelchair is research and development, manufacturing and sales
enterprise. Specialized in Portable power wheelchair, Portable
electric scooter, knee walker, and electric standing wheelchair.
Products passed through ISO 13485, FDA and CE standard. We provide
OEM service, great quality. "PF" as the registered trademark
renowned for "Safe, Light and Portable" on the market. Products
covers 20 Provinces in China and export to USA, UK, Canada, and
Australia. PF wheelchair gained wide range recognition and trust
from our customers. We will continue providing high quality
products and service.
The chair is controlled with an easy-to-uick thse joystat can be
placed on either the left or right hand side depending on the
user's preference. It is designed with a 8-inch rear-wheel drive
system to overcome tough terrains such as hills and ramps and
provides a smooth ride throughout.
The product specifications you cared most
| Net Weight with 1 standard battery pack | 22kg (48.5 lbs) |
| Max Speed | 6 km/hr (3.7 miles/hr) |
| Maximum Seat Capacity | 100kg (220 lbs) |
| Seat Width | 45cm (17.7”) between armrests |
| Seat Depth | 45cm (17.7”) |
| Seat Height From Ground (Front) | 49cm (19.3”) |
| Seat Height From Ground (Back) | 47cm (18.5”) |
| Turning Radius | 75cm (29.5”) |
| Folded Size L X H X W | 37cm x 71cm x 56.5cm (14.6” X 28” X 22”) |
| Opened Size | 93cm x 87.5cm x 56.5cm (36.7” X 34.4” X 22”) |
| Packing Size | 36.5cm x 78.5cm x 66cm (14.4” X 31” X 26”) |
| Max Distance / Full Charge | ~15km with 1 battery (15% less in cold weather)
~30km with Optional 2nd batttery |
| Charge Time (for 1 battery) | 4.5hours |
| Slope Capability | 10˚ |
| Battery Type | Soft Pack Polymer Lithium Ion Battery |
| Motor Type | Latest Brushless Motor |
| Motor Power | 150W x 2 |
| Front Wheel | 7” |
| Rear Wheel | 8” |
| Frame Material | Quality Aluminium Alloy |
| Rear Tire Type | Rigid PU tyre |
| Armrest | Raisable |
| Footrest | Foldable |
| Backrest | Foldable |
* Error and uncertainty in measurement
Wheelchair Details
1. Easy operate with a joystick
2. Light weight, lithium battery
3. Aluminum alloy frame make more strong
4. Alumium alloy for front/Rear wheel
5. Electric & Mechanical brake
6. Easy foldable for storage & transportion
7. Armrest can be turned up, more convenient for disabled up and
down.
8. Shock-absorber for the front wheel
FAQ
Q1. May I have a sample order for this electric wheelchair? And
what is your MOQ?
A: Yes, we welcome sample order to test and check quality. MOQ 1PC
electric wheelchair for sample checking is available.
Q2. What about the lead time?
A: We have sample in stock, usually one 20 GP container (about 100
pcs) delivery time is 30 days.
Q3. Is that possible to print my logo on electric wheelchair ?
A: Yes. we accept OEM/ODM orders. It is available to print logo on
electric wheelchair. Please send your HD logo before our production
and will confirm with u until get your satisfaction for the sample.
Q4. Do you offer guarantee for the electric wheelchair?
A: 48 months for wheelchair frame,24 months for brushless motor,
18months for lithium battery and joystick controller and 6 months
for other parts.
Q5. Are you trading company or manufacturer?
A: Welcome to our factory if you willing to. We are professional
foldable and lightweight wheelchair, knee walker scooter and
electric scooter Manufacturer, we have much more experience in
global market. we can ensure products quality, The pre-sale and
after sale service, every spare parts can be sent when you need to
replace.
