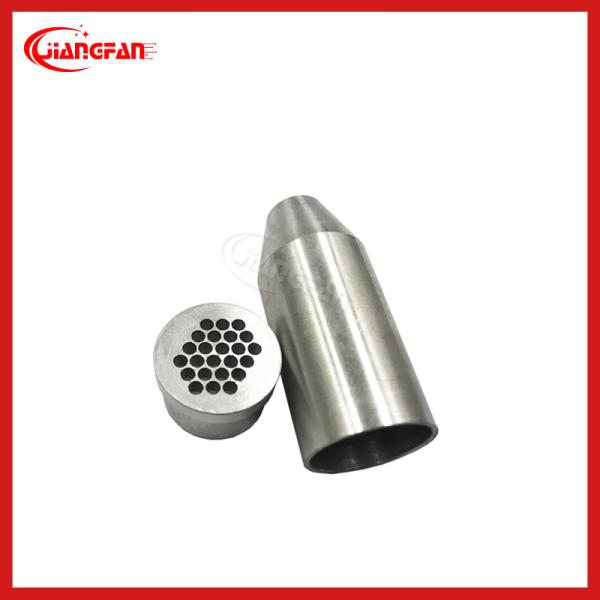

FZQ-04 Optical cable Bundle splitter
Fiber Optic Fan Out Kit,FZQ-04 core dia 0.9-3.0mm,waterproof
cables,armored cables,outdoor cables,stainless steel
Material available:stainless steel/aluminum alloy/copper/iron/POM
Surface treatment:anodizing,electroplating,spray molding,passivation,laser laser
LOGO
Color:conventional color is blank,sliver white,customizable in any other
color.It is suitable for all round indoorcables,outdoor
cables,waterproof cables,armored cables,photoelecric composite
cables and FTTH cables.
Accessories:heat shrinkable tube,glue,protective sleeve,fixing
ring,screw,spanner.
Application:
- Bunch cable branch
- Armored fiber optic cable branch
- Field optical cable branch
- Various optical/cable branch solutions
Features:
- Material non-metal black
- POM material
- High temperature resistant to ROHS
- Fast and easy fixing
Product structure dimension drawing:
FZQ-03 Specifications:
| Product Code | φOD x L | Specification | cable dia | product material |
| FZQ-04-01 | 11.4*40 | 6core2.0 | 3-8mm | Steel/Aluminum/Copper/Plastic |
| FZQ-04-02 | 14*45 | 6core3.0 | 3-8mm | Steel/Aluminum/Copper/Plastic |
| FZQ-04-03 | 11.4*40 | 8core2.0 | 3-8mm | Steel/Aluminum/Copper/Plastic |
| FZQ-04-04 | 14*45 | 8core3.0 | 3-12mm | Steel/Aluminum/Copper/Plastic |
| FZQ-04-05 | 10*33 | 12core0.9 | 3-12mm | Steel/Aluminum/Copper/Plastic |
| FZQ-04-06 | 14*45 | 12core2.0 | 3-12mm | Steel/Aluminum/Copper/Plastic |
| FZQ-04-07 | 18*45 | 12core3.0 | 3-12mm | Steel/Aluminum/Copper/Plastic |
| FZQ-04-08 | 15*45 | 16core2.0 | 3-12mm | Steel/Aluminum/Copper/Plastic |
| FZQ-04-09 | 22*45 | 16core3.0 | 3-12mm | Steel/Aluminum/Copper/Plastic |
| FZQ-04-10 | 14*38 | 24core0.9 | 3-12mm | Steel/Aluminum/Copper/Plastic |
| FZQ-04-11 | 18*48 | 24core2.0 | 3-12mm | Steel/Aluminum/Copper/Plastic |
| FZQ-04-12 | 26*58 | 24core3.0 | 3-12mm | Steel/Aluminum/Copper/Plastic |
| FZQ-04-13 | 24*53 | 36core2.0 | 3-12mm | Steel/Aluminum/Copper/Plastic |
| FZQ-04-14 | 26*57 | 48core2.0 | 3-12mm | Steel/Aluminum/Copper/Plastic |
| FZQ-04-15 | 31*80 | 72core2.0 | 3-12mm | Steel/Aluminum/Copper/Plastic |
FZQ-03 product ordering information:
Core No. OD2 |
Core Dia OD2 | OD Cable Dia | OD1 Product Dia | L Product Lenths |
material |
| 1 | 2core | 1 | 0.9mm | 1 | 3.0mm | 1 | 10mm | 1 | 20mm | 1 | POM |
| 2 | 4core | 2 | 1.6mm | 2 | 5.0mm | 2 | 12mm | 2 | 35mm | 2 | Aluminum alloy |
| 3 | 6core | 3 | 2.0mm | 3 | 7.0mm | 3 | 14mm | 3 | 43mm | 3 | copper |
| 4 | 8core | 4 | 3.0mm | 4 | Other | 4 | 18mm | 4 | 50mm | 4 | Stainless steel |
| 5 | 12core | 5 | Other | | | 5 | Other | 5 | Other | 5 | Other |
| 6 | 24core | | | | | | | | | | |
| 7 | Other | | | | | | | | | | |
