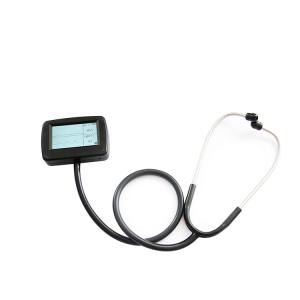

CMS-M Multi-functional Electronic Visual Stethoscope+SpO2+ECG
Instructions
CMS-M is a kind of multi-functional visual stethoscope It is added
with collection ECG waveform function on the basis of the
traditional medicinal stethoscope.It can display the heart rate,
the pulse oxygen Saturation and pulse rate can also be monitored
through SpO2 probe. The product is applicable for family, hospital,
private Clinique, community medical treatment.etc.
Main features
1. Regular stethoscope
2. Compact and portable,easy to use
3. Display of ECG waveform, heart rate,SpO2 ,pulse rate ,pulse
waveform
4. Adjustable screen contrast
5.Alarm for SpO2 and pulse rate exceeding limits
6. Low power consumption
Main Parameters
1.Heart Rate measuring range: 30bpm-300bpm ,Accuracy: ±2 bpm or
±2%(select larger)
2.SpO2 measuring range: 0%-100% (the resolution is
1%),Accuracy:70%~100% :±2% ,below 70% unspecified
3. Pulse Rate measuring range: 30bpm-250bpm,Accuracy: ±2 bpm or
±2%(select larger)
4.Resistance to surrounding light: The deviation between the value
measured in the condition of man-made light and indoor natural
light and that of darkroom is less than ±1%.
5. Measurement Performance in Weak Filling Condition: SpO2 and
pulse rate can be shown orrectly when pulse-filling ratio is 0.4%.
SpO2 error is ± 4%, pulse rate error is ±2 bpm or±2% (select
larger).
6. Display : 2.7" LCD
7. Power consumption:≤60mA
8. Voltage: DC 3.6 -4.2V
9.Power Supply: 3.7V Lithium Battery
10. Battery working hour:It can last more than 20 hours when the
power is full.
11. Safety Type:Internally powered equipment,B Type
Accessories
1.A User Manual
2. A power adapter
3.A data line
4.An oximeter probe (optional, BF applied part )
