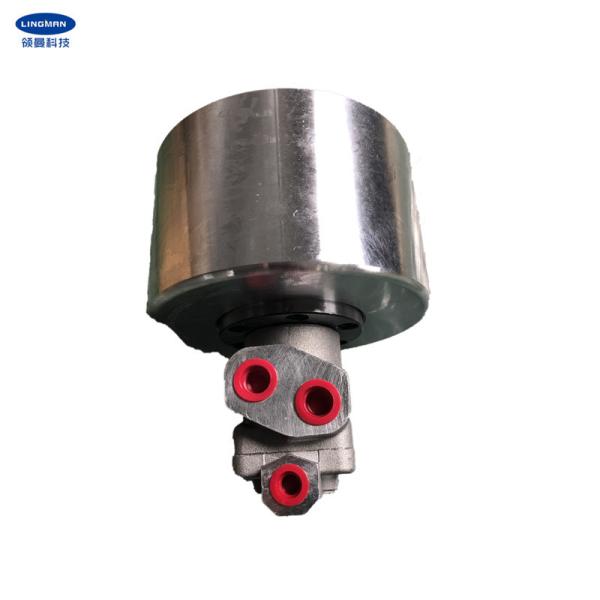

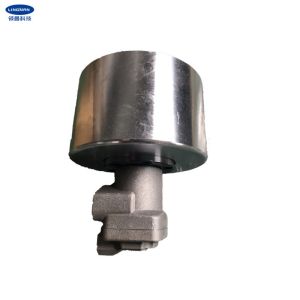

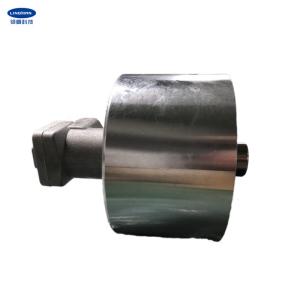

Low Inertia And Light Weight Hydraulic Rotary Cylinder Rotary
Attachment
1. Description
This hydraulic cylinder is made of dense, light aluminum alloy, and
low inertia, light weight, which can reduce the load on the main
shaft of the machine.
Solid rotary cylinder is high-speed continuous rotation and
balanced, long life, internal parts are all imported original
parts.
High pressure type, long stroke type, and large bore type can be
customized according to clients' needs.
Under high-speed rotary state, the product exhibits stable
performance and reduces the mechanical load. It is the first choice
of accessories for numerical control machines and automatic lathes.
2. Performance Parameters
Model number | RH-65 |
Push side | 31.0cm² |
Pull side | 27.9cm² |
Allowable pressure | 3.5MPa |
Limit speed | 6000r.p.m. |
Stroke | 15mm |
Weight | 2.9KG |
3. Dimensions
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws |
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| s. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
