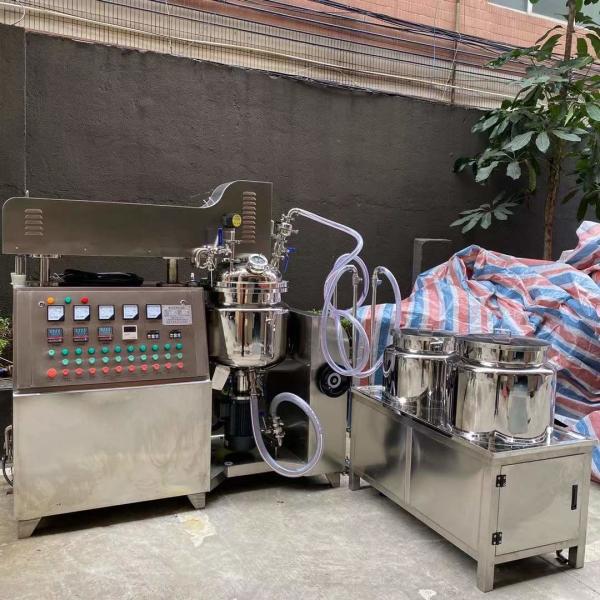

Laboratory Cosmetic Ointment Cream Vacuum Homogenizer Emulsifying Mixer

The machine is professionally designed according to the ointment manufacturing process of cosmetics and ointments etc products through introducing advanced technology from abroad. suitable for production of ointment and cream products in cosmetic and pharmaceutical plants. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.

Main Features:

1---The triple mixing adopts the imported frequency inverter for speed adjustment,which can meet different technological demands.
2---The homogenizing structure is made through German techology. The machine adopts the improted double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 3500rpm and the high shearing fineness can reach 0.2-5um.
3---The vacuum defoaming can make the materials meet the requirement of being aseptic . The vacuum materials vacuum sucking can avoid dust.
4---The main boiler lid can adopt lifting system, it is easy to clean and the cleaning effect is more obvious, the main boiler can adopt tilting discharge.
5---The boiler body is welded with 3 layer imported SS plate, tank body and pipes adopts mirror polish whcih meet the GMP standard.
6---According to process requirement, the tank body can heating and cooling the electric heating.
7----To ensure the stability of whole machine, the machine adopt the imported electric appliances which can meet the international standards.

Details:

1) Nominal volume:50L-5000L and other general specifications and non-standard design and production.

2) The structure of the form: vertical, the use of conical, oval, dish shaped head, also apply to the need to close the heating, mixing, reaction, enzymatic hydrolysis and other process operation.

3) Jacket forms: hollow heat conducting oil or water), semicircular coil pipe, heating or cooling efficiency is high.

4) Insulation material: filling pearl cotton, rock wool, polyurethane foam, with good thermal insulation effect.

5) Exterior surface of the cylinder body: use mirror polishing, beautiful and clean appearance.

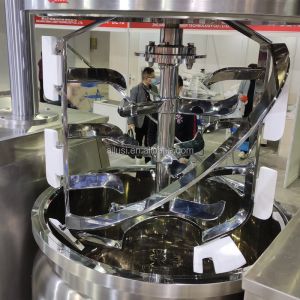

6) Stirring device: at the top of the tank in the (partial) heart stirring, stirring side; agitator types: frame type, anchor type, push type, blade, scraping wall blade etc.

7) Stirring speedLow speed stirrer, high speed disperser or high speed homognizer.

8) Level meter form: glass tube liquid level gauge, static pressure sensing type liquid level meter and so on (for selection).

9) Equipment accessories configuration: quick open sanitary manhole, mirror, respirators, CIP cleaning machines, material liquid inlet and outlet, circular mouth, hot and cold media import and export interface, the nozzle can be according to the process of selection may increase or decrease).

10) Tank equipment material: 316L & 304 Stainless steel.

• Item NO.:AVE

• Lead Time:35 days

• Product Orgin:China

• Shipping Port:Yangzhou/Guangzhou

• Payment:EXW, FOB, CIF, DAP, DDP etc

• price range:9000-14000/1$

For the Cosmetic Vacuum Equipment, we can collocate the production line flexiblely according to customer's production scale and technology, such as to add pretreatment boiler, cooling tank and conveying pump etc, this greatly helps to improve the production efficiency and save energy.

Factory:

FAQ

Q1: Are you a factory or trading company?

A1: We are a factory specialized in Vacuum emulsifying mixer, filling machine, RO water treatment, capping machine and labeling machine…etc for cosmetic, pharmaceutical, chemical equipment over 20 years.

Q2: How does your factory do regarding quality control?

A2: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.

Q3: What’s the guarantee and the after service if we purchase from you?

A3: All the equipment ordered from us will provide one year guarantee from the delivery date.we could send our engineer to install or fix the machine locally.

Q4: Are your machines difficult to operate? How do you teach us to use the machine?

A4: Our machines are easy to operate, before delivery we will shoot instruction video to introduce machines' functions and to teach you how to use them.

Q5: Can you make the machine according to customers' request?

A5: Yes of course, OEM is acceptable. Most of our machines are customized design based on customer's requirements or situation.
