CuBe2 BrB2 C17200 Beryllium Polished Copper Sheet 6mm Thickness For
Electrical Industry
Product Normal Description:
| Product Name | Beryllium polished copper sheet |
| Grade | CuBe2, BrB2, C17200 |
| End Product Form | Sheet/Plate |
| Standard | ASTM B194 |
| State of product | H(TD04), AT(TF00), HT(TH04) |
| Thickness | 6mm |
| Application | Electrical Industry |
| Product Brand | CUBERYLLIUM® |
Product Information of CuBe2 BrB2 C17200 Beryllium Copper Alloy:
C17200 Beryllium Copper, the full range of beryllium copper is
called " the king of non-farrous metal elasticity".
It is used for all kinds of micro-motor brushes, switches, relays,
connectors, temperature with the increasing requirements for the
reliability and service life of the springs and various springs of
the controller, the demand for beryllium copper will also increse.
C17200 copper's ultimate tensile and Rockwell hardness properties
in a peak aged condition are in the 200 ksi range and RC 45
respectively (electrical conductivity 22% IACS minimum).
Normal Name: C17200 Beryllium Copper Alloy
Other Names: Alloy 25 Beryllium Copper Alloy, C172 beryllium copper
alloy, DIN 2.1247 Beryllium Copper Alloy, CDA 172 Beryllium Copper
Alloy, CuBe2 Beryllium Copper Alloy, etc.
Chemical Composition of CuBe2 BrB2 C17200 Beryllium Copper Alloy:
Product Grade: CUBERYLLIUM ®-172(UNS. C17200)
Beryllium(Be): 1.80-2.00%
Cobalt(Co) + Nickel(Ni): 0.20% Min
Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max
Lead: 0.02% Max
Copper(Cu): Balance
Note: Copper plus additions equal 99.5% Minimum.
Typical Physical Properties of CuBe2 BrB2 C17200 Beryllium Copper Alloy:
| Density (g/cm3): | 8.36 |
| Density before age hardening (g/cm3): | 8.25 |
| Elastic Modulus (kg/mm2 (103)): | 13.4 |
| Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): | 17 x 10-6 |
| Thermal Conductivity (cal/(cm-s-°C)): | 0.25 |
| Melting Range (°C): | 870-980 |
Temper Designations of CuBe2 BrB2 C17200 Beryllium Copper Plate:
| Mechanical and Electrical Properties of C17200 Sheet/Plate |
| CUBERYLLIUM | ASTM | Heat Treatment | Thickness (mm) | Tensile Strength (Mpa) | Elongation Percent | HARDNESS Rockwell B or C Scale | Electrical Conductivity
(% IACS) |
| Designation | Designation |
| A | TB00 | | All Size | 400~580 | 20~60 | B45-85 | 15～19 |
| H | TD04 | ＜10 | 600~880 | 8~20 | B91-103 | 15～19 |
| 10~25 | 600~850 | 8~20 | B90-102 | 15 ~ 19 |
| 25~50 | 580~820 | 8~20 | B88-102 | 15 ~19 |
| ＞50 | 580~820 | 8~20 | B88-102 | 15 ~19 |
| AT | TF00 |
3 hr 315℃
| All Size | 1120~1358 | 3~10 | C36-41 | 22 ~ 28 |
| HT | TH04 | 2 hr 315℃ | ＜10 | 1200~1450 | 1~5 | C38-45 | 22 ~ 28 |
| 10~25 | 1200~1500 | 1~5 | C38-44 | 22 ~ 28 |
| 25~50 | 1200~1450 | 2~5 | C37-43 | 22 ~ 28 |
| ＞50 | 1100~1350 | 2~5 | C36-42 | 22 ~ 28 |
Applications of CuBe2 BrB2 C17200 Beryllium Copper Alloy:
| ELECTRICAL: |
| Electrical Switch / Relay Blades | Fuse Clips | Switch Parts |
| Relay Parts | Connectors | Spring Connectors |
| Current-Carrying | Contact Bridges | Belleville Washers |
| Navigational Instruments | Clips | |
| FASTENERS: |
| Washers | Fasteners | Lock Washers |
| Retaining Rings | Roll Pins | Screws |
| Bolts | | |
| INDUSTRIAL: |
| Pumps | Springs | Electrochemical |
| Shafts | Non-Sparking Safety Tools | Flexible Metal Hose |
| Housings for Instruments | Bearings | Bushings |
| Valve Seats | Valve Stems | Diaphragms |
| Springs | Welding Equipment | Rolling Mill Parts |
| Spline Shafts | Pump Parts | Valves |
| Bourdon Tubes | Wear Plates on Heavy Equipment | Bellows |

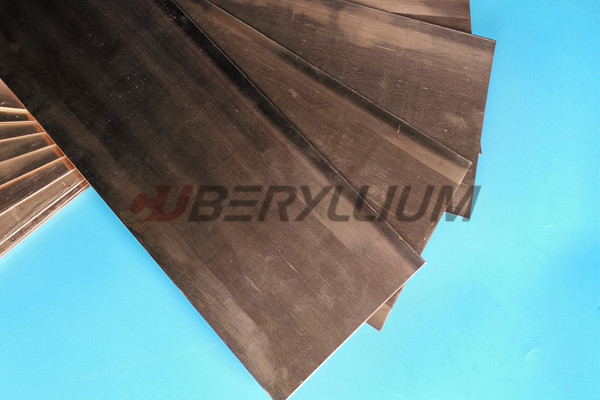

Product Photos:
FAQ:
Q1: Could you produce Beryllium Copper strip by Mill Hardened
process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06)
XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2: We are the only one who melting by Vacuum semi-Continuous
Furnace.
3: Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation,
Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the
amount is different.
