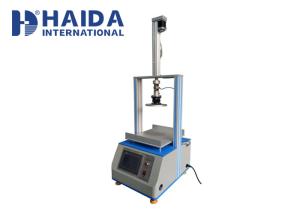

    LCD Display Controllable Foam Compression Recovery Time Tester Servo Motor Drive

    Ask Lasest Price
    Brand Name : HAIDA
    Model Number : HD-F750-5
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 30 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    LCD Display Controllable Foam Compression Recovery Time Tester Servo Motor Drive

    LCD Display Controllable Foam Compression Recover Time Tester Servo Motor Drive


    GENERL SPECIFICATIONS

    Packaging Dimensions: (W*D*H) 700*920*1200MM

    Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

    Gross Weight: 160kg

    HS Code: 9024800000


    APPLICATIONS&TEST PURPOSE:

    This machine is used to determine the recovery time of the slow recovery (viscoelastic) foams.


    DESIGN STANDARD : ASTM D 3574-2008


    TEST PROCEDURES:

    1. Prepare and condition the test specimen according to the geometries and guidance described in the test standard for IFD testing.

    2. Place the specimen onto the perforated base compression platen. Lower the circular top platen onto the top of the specimen to apply a small preload and identify specimen thickness.

    3. Indent the specimen to 75% of its original thickness at the speed referenced in the test standard.

    4. After a specified dwell time, remove the circular top platen quickly to the specified deflection (close to original height), and record how much time it takes for foam to contact the top platen.


    STANDARD FEATURES:


    Control and displayPLC+LCD
    SensorLoad cell
    Capacity200KG
    UnitN
    Up plateDiameter 200mm, bottom fillet R1mm
    Low plate400×400mm, holes diameter 6mm, space 20mm
    Test Sample Size380*380*100mm
    Test speed1000 + 100 mm/min
    MotorServo motor
    DriverElectric actuator
    PowerSingle phase, 220V, 50Hz
    Weight160KG
